SL25-LED

Hardscape

Home • Fixtures • Hardscape • SL25-LED

    Finish Options


    Aged Brass
    (Standard)


    Premium

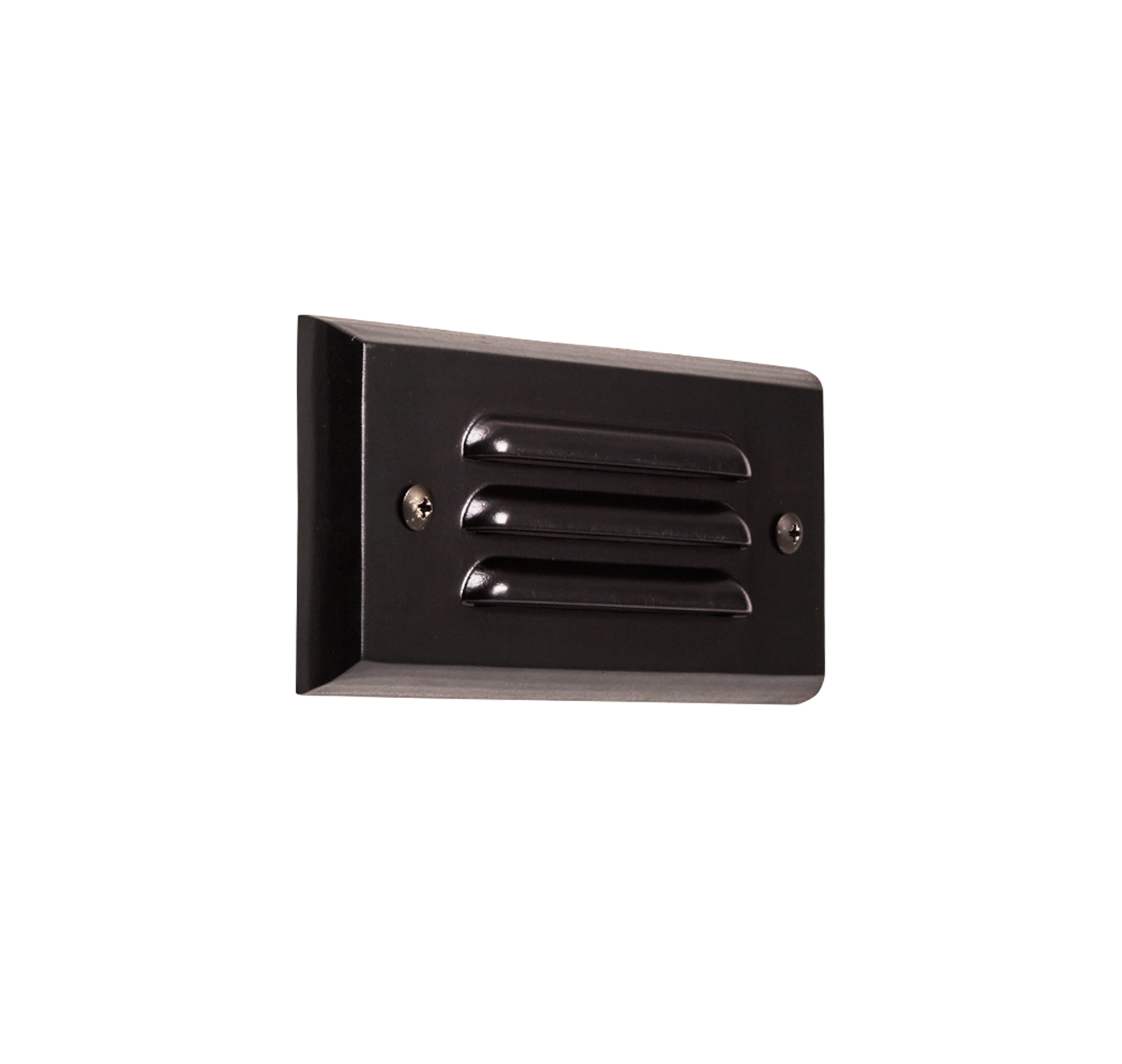

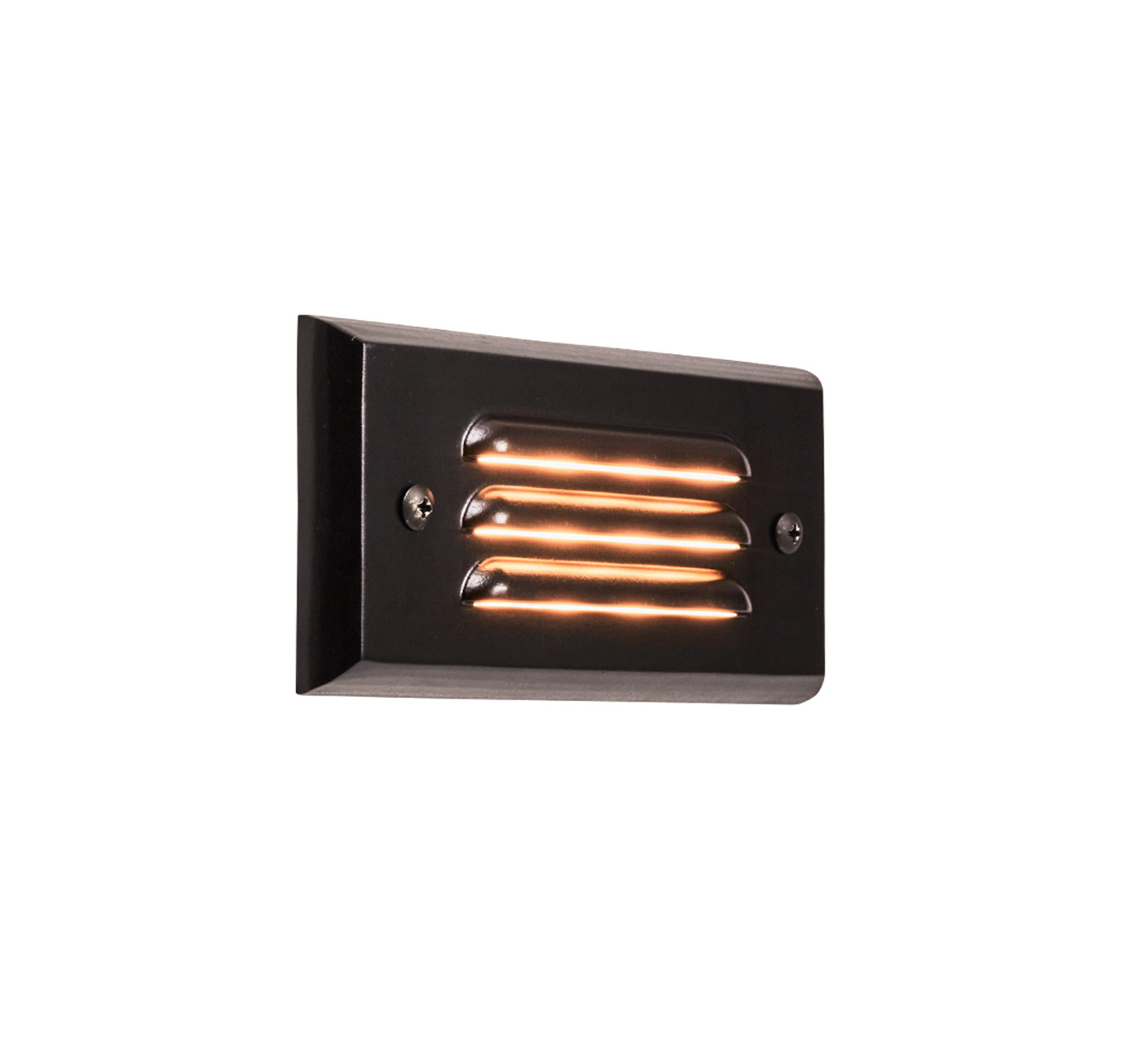

    Black Overcoat
    (Optional) -BLK

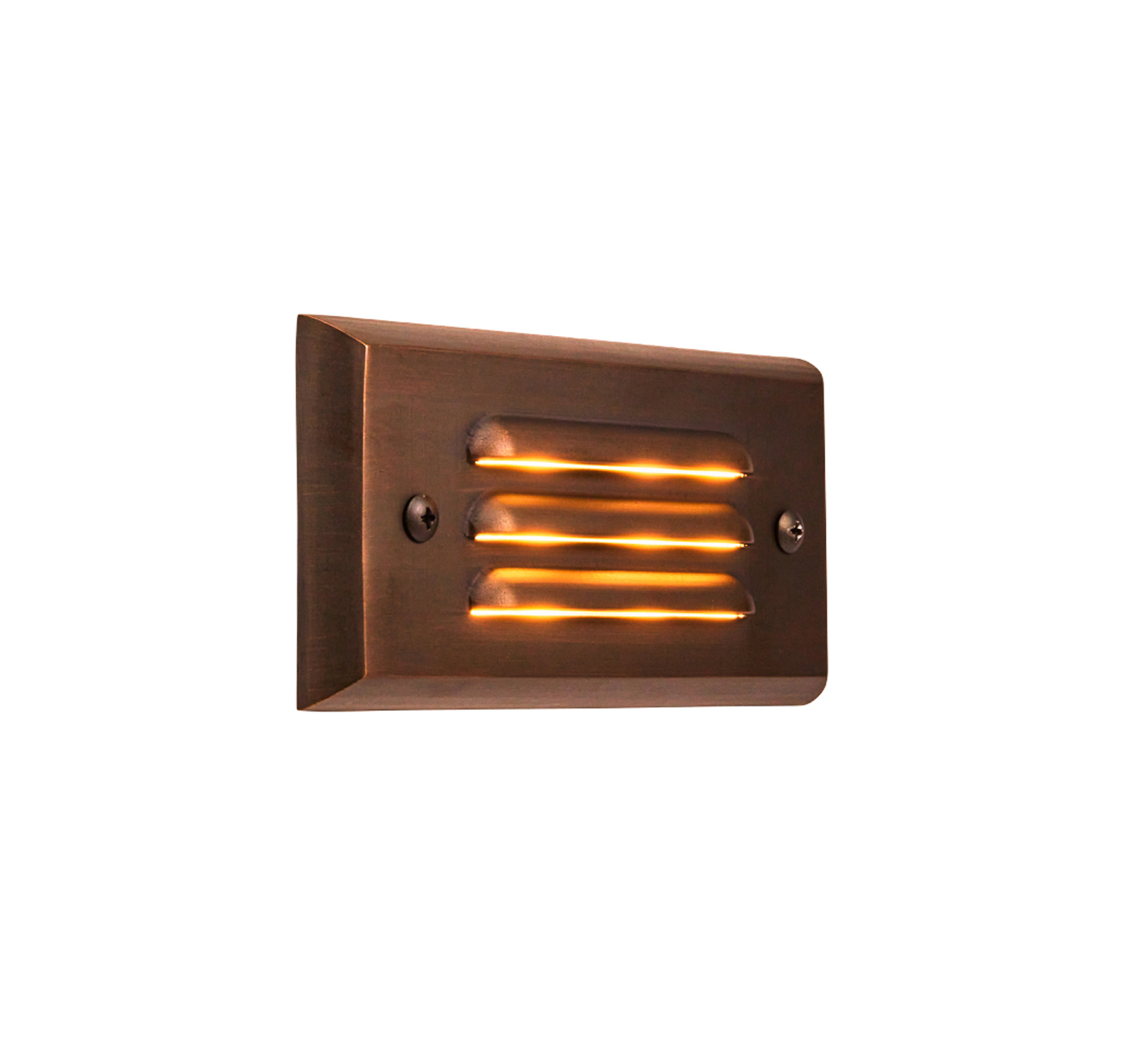

    SL25-LED

    Hardscape

    6” width x 2.88” tall, louvered face. Convenient surface-mounted (backless), does not have/require a junction box. 7W integrated LED standard.

    FAST, CONVENIENT INSTALLATION

    Thin style fixture allows surface mounting to any surface. No junction box needed or provided. Wood screw anchors provided. Choose other anchors to affix to masonry if desired.

    Specifications

    Lead Wire: 25’ 16AWG brown wire lead.

    Material: Brass construction.

    Light Source

    Standard integrated 7W 570lm 2700K LED. Optional factory-installed RGB Bluetooth module. Note that heavy shielding of louvered cover reduces lumen output significantly, consult factory for photometrics if needed.
    Spec Sheet
    Installation Details

    Dimensions

    WIDTH6"
    HEIGHT2.88"

    Factory-Installed RGB LED Bluetooth Module

    WATTAGE1w - 4w
    LUMEN OUTPUT15lm - 200lm
    CCT OPTIONS2700K, 3000K, 4000K
    RGB OPTIONSUnlimited color wheel, quick preset options for red, green, blue, amber and purple
    DIMMINGOption available for every color choice.

    How to Specify

    FIXTURECHOOSE FINISHCHOOSE LIGHT SOURCE
    SL25-LED Add -BLK for black overcoat-LED for standard integrated
    or -BT for RGB Bluetooth module
    Example: SL25-LED-LED
