XF600

Power & Control

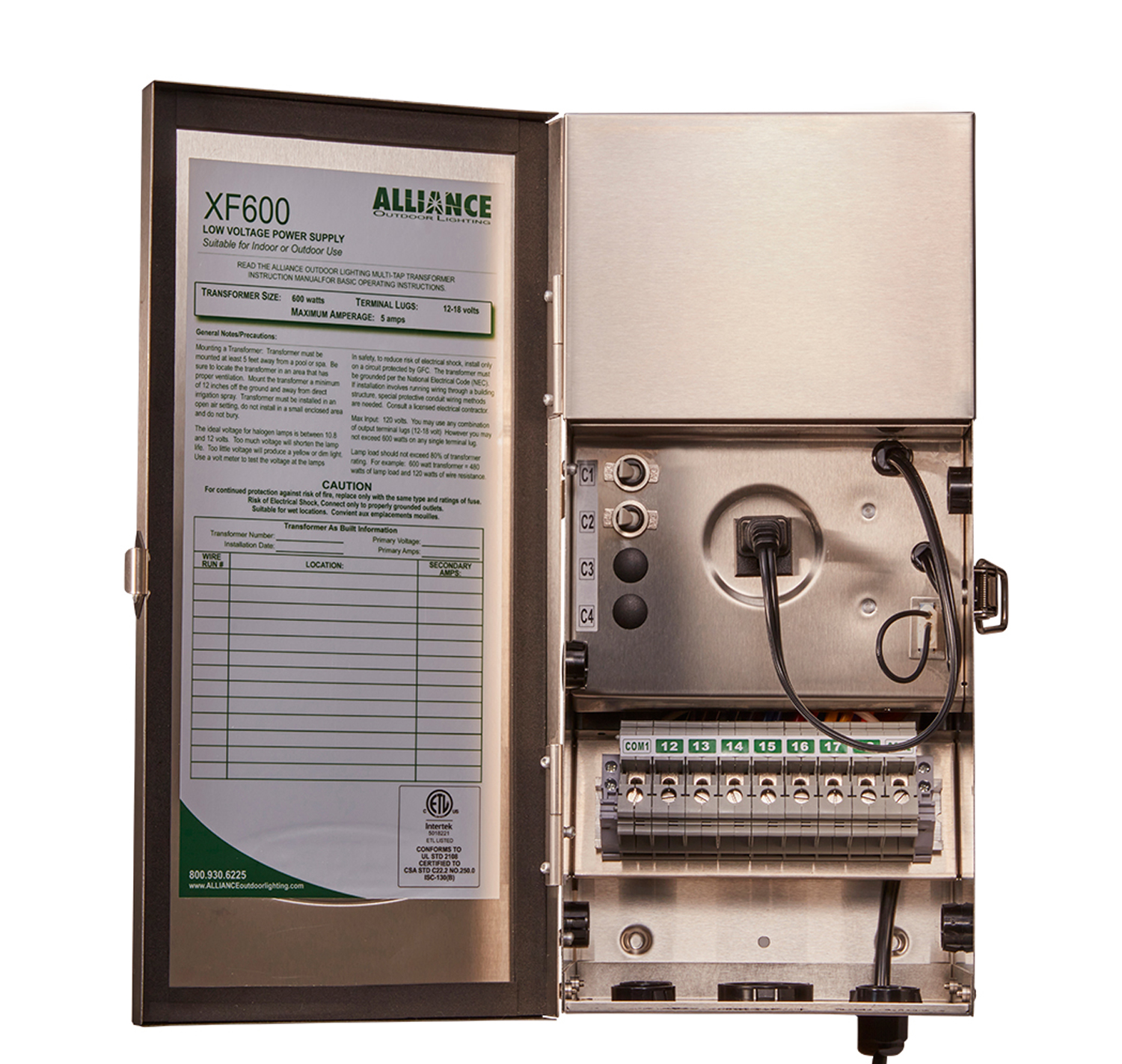

The heart of a low-voltage outdoor lighting system is the transformer. Our rugged professional-grade multi-tap transformer sets the standard for ease of installation and adaptability to standard and app-based controls (also available packaged with our iTimerPRO).

Key Features

  • Fully-potted, insulated, single-core transformer
  • Easy on/off, secondary breaker switches on each common tap
  • Two common lug terminals
  • Amp loop to check the primary amperage on the transformer
  • Accepts plug-in-timers, has direct photocell connection
  • Angled terminal strip for easy wire connections, eliminates blind spots
  • Heavy-duty stainless-steel cabinet with integrated mounting bar, lockable
  • Removable bottom panel, 5 knockouts for wire connections
  • Integrated short circuit and overload protection
  • Includes 5’ grounded heavy-gauge power cord
  • ETL tested, in conformance to ANSI/UL 1838

Electrical Specifications

600 watts with 6 taps: 12, 13, 14, 15, 16, 17, 18 volts, Maximum total amps: 6A. Use any combination of terminal lugs but do not exceed transformer’s rated wattage on any lug.

Dimensions

HEIGHT ON WALL16"
WIDTH7.25"
DEPTH5.12"

How to Specify

CHOOSE MODELWATTAGEORDER CONTROLS SEPARATELY
XF600 600 WattsiTimerPRO app-based control
TIMER mechanical timer
PC plug-in photocell
Example: XF600
