Underwater. Solid brass underwater lamp built for outstanding durability and longevity for fountains, cascades, waterfalls. Submersible or install in waterfall splash areas.
Mounting / Installation
Lead Wire: 25’ waterproof wire lead standard and pre-connected to fixture. Optional 50’ lead available by special order. Make wire splices outside of the water feature.

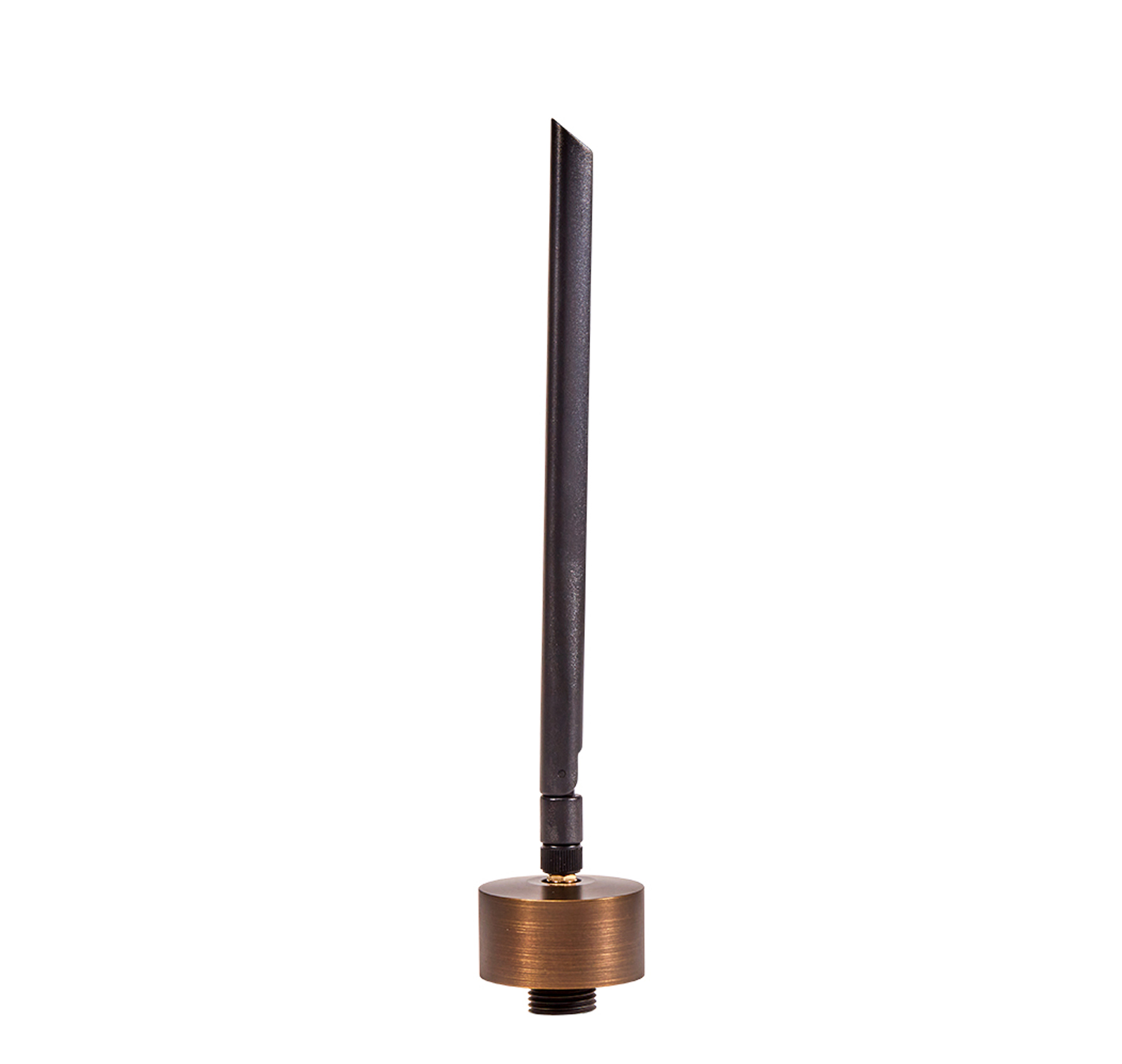

Mounting: Includes heavy brass base. Bluetooth model includes remote antenna which must be installed outside of water feature on ground stake supplied.
Key Details
Housing: Solid cast brass.
Aiming: Knob for angle adjustment.
Socket: Spring-loaded ceramic bi-pin MR16, with dual contacts and lamp clips.
Faceplate: Solid cast brass, with rubber seal, with clear tempered, shock-resistant glass lens.
Dimensions
| HEIGHT | 5" |
| DEPTH | 4.25" |
| WIDTH | 4.25" |
Factory-Installed RGB LED Bluetooth Module
| WATTAGE | 2w - 4w |
| LUMEN OUTPUT | 10lm - 430lm |
| BEAM SPREAD | 40° |
| CCT OPTIONS | 2700K, 3000K, 4000K |
| RGB OPTIONS | Unlimited color wheel, quick preset options for red, green, blue, amber and purple |
| DIMMING | Option available for every color choice. |
How to Specify
| FIXTURE | ADD FOR LIGHT SOURCE | Optional Accessory |
| UL100 | Add suffix for lamp (see above) or -BT for Bluetooth (blank for no lamp) | Add UL100-bt-JXN for UL100-bt Junction Box Connect (2) UL100-bt to a Single bt Antenna |
Example: UL100-LED5W
