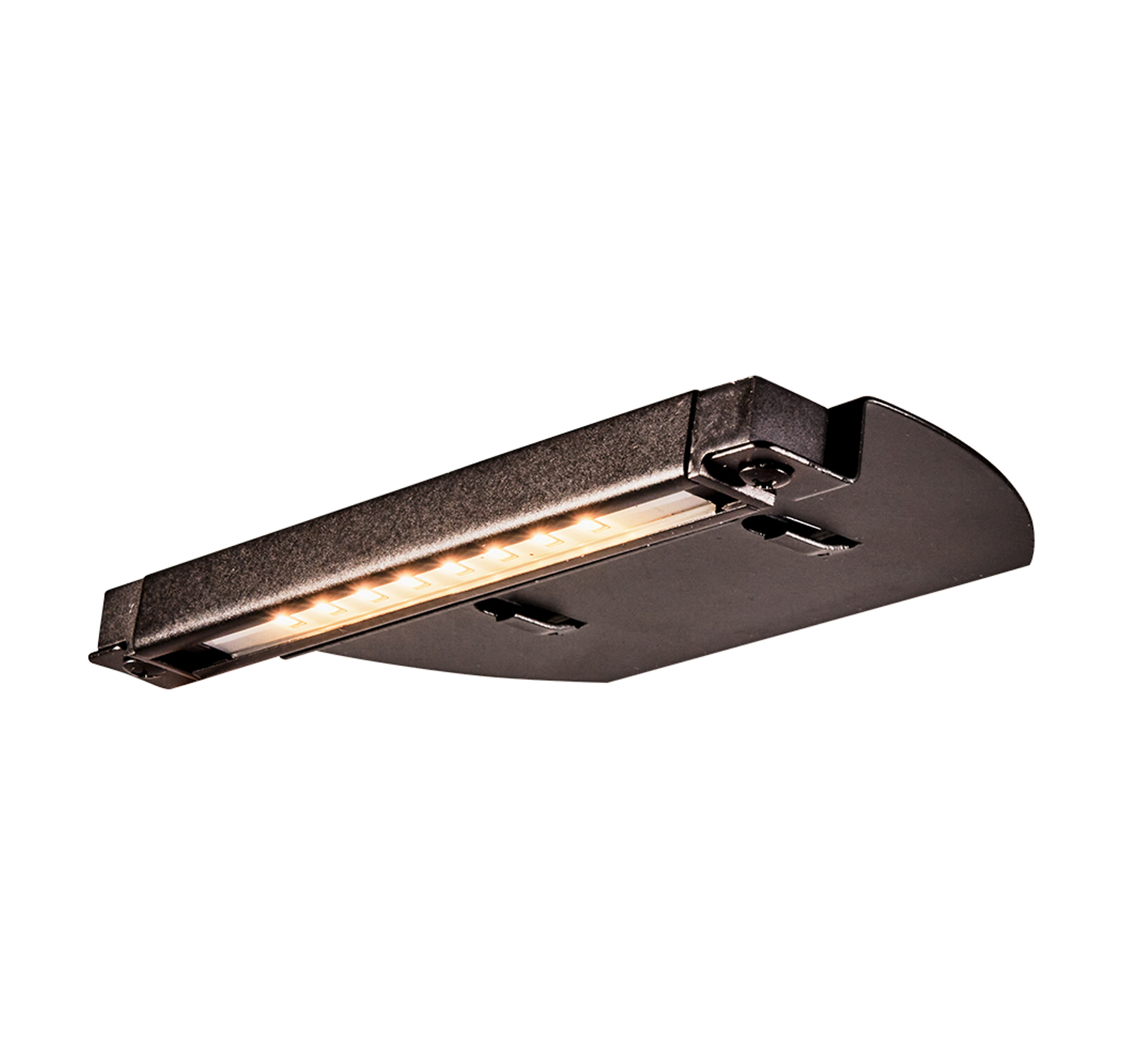

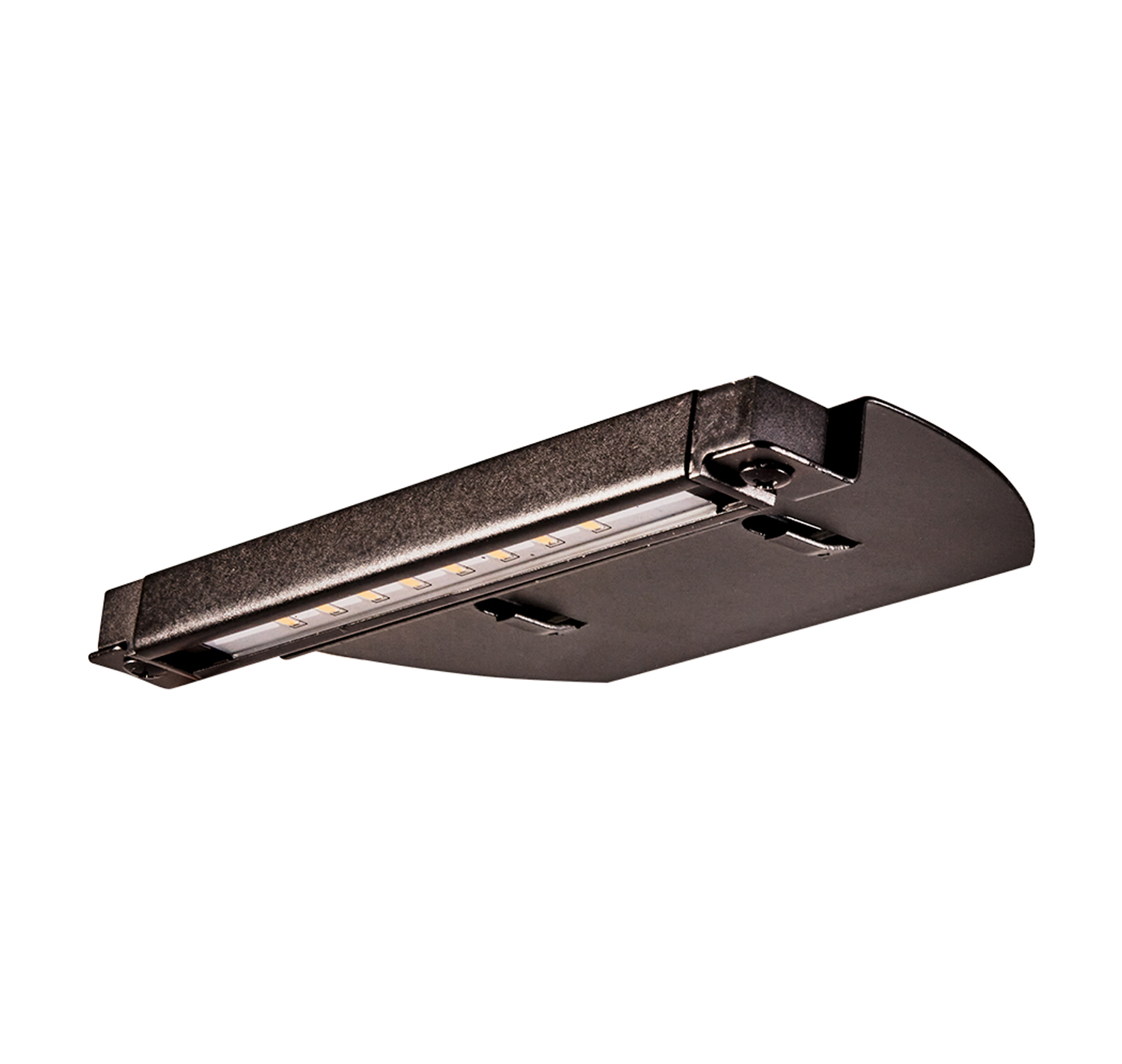

    Black Overcoat
    (Optional) -BLK

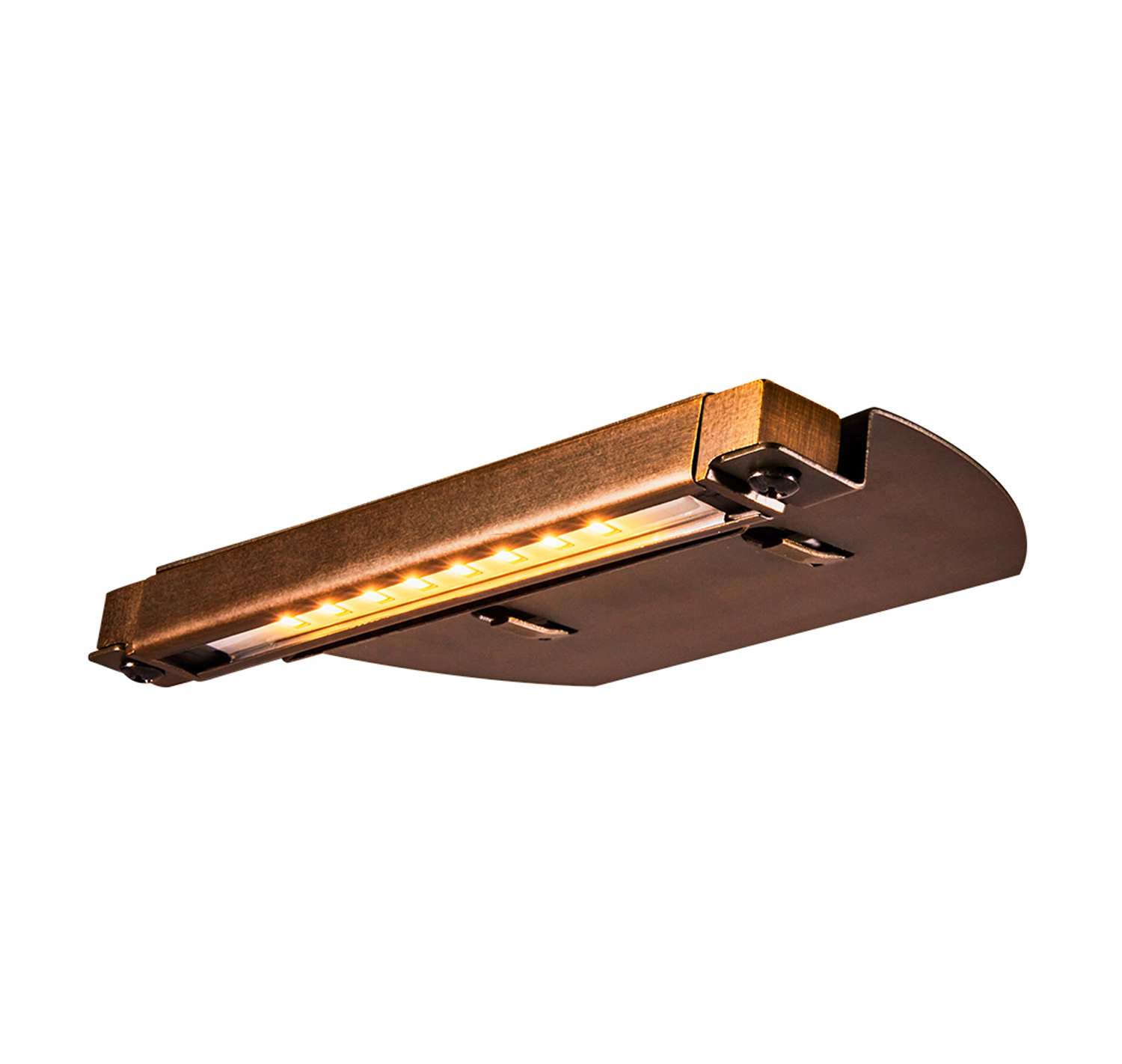

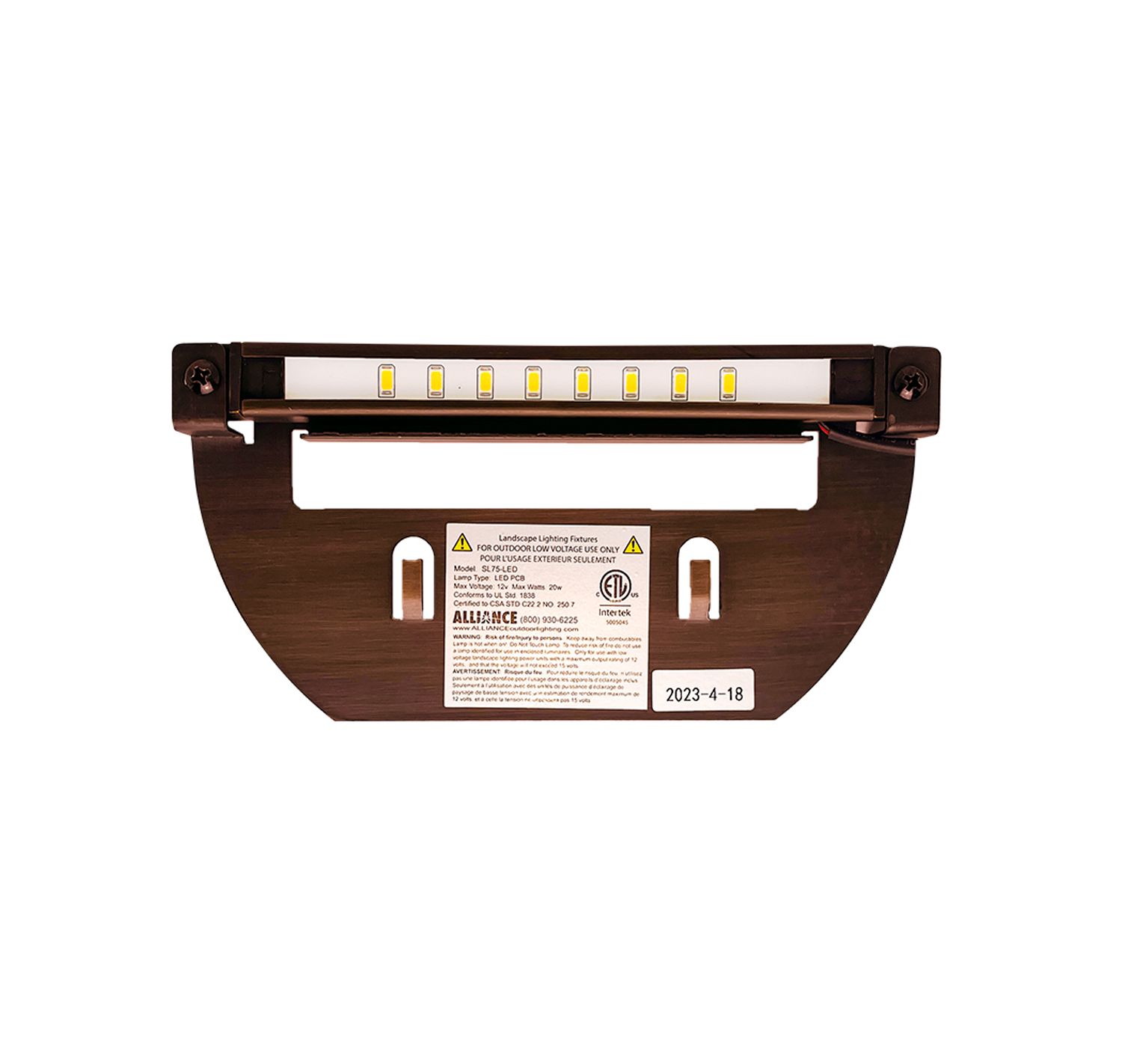

    SL75-LED

    Hardscape

    Popular 7” wide fixture for all applications.

    Specifications

    Common Applications: Retaining walls, perimeter walls (use mounting plate); can also surface mount to railings, decks.

    Lead Wire: 10’ 16AWG brown wire lead.

    Material: Fixture housing cast brass. Removable mounting plate stainless steel. Includes optional cast brass glare shield and polycarbonate frosted lens.

    Light Source

    3W integrated LED (8 chips) 300lm.

    Dimensions

    LENGTH7"
    BRACKET DEPTH3.5"
    HOUSING HEIGHT0.5"
    HOUSING DEPTH0.35"

    How to Specify

    FIXTUREFINISH OPTION
    SL75-LED Add -BLK for black overcoat
    Example: SL75-LED-BLK
