SL35-LED

Hardscape

HomeFixturesHardscapeSL35-LED

    Finish Options


    Aged Brass
    (Standard)


    Premium
    Black Overcoat
    (Optional) -BLK

    SL35-LED

    Hardscape

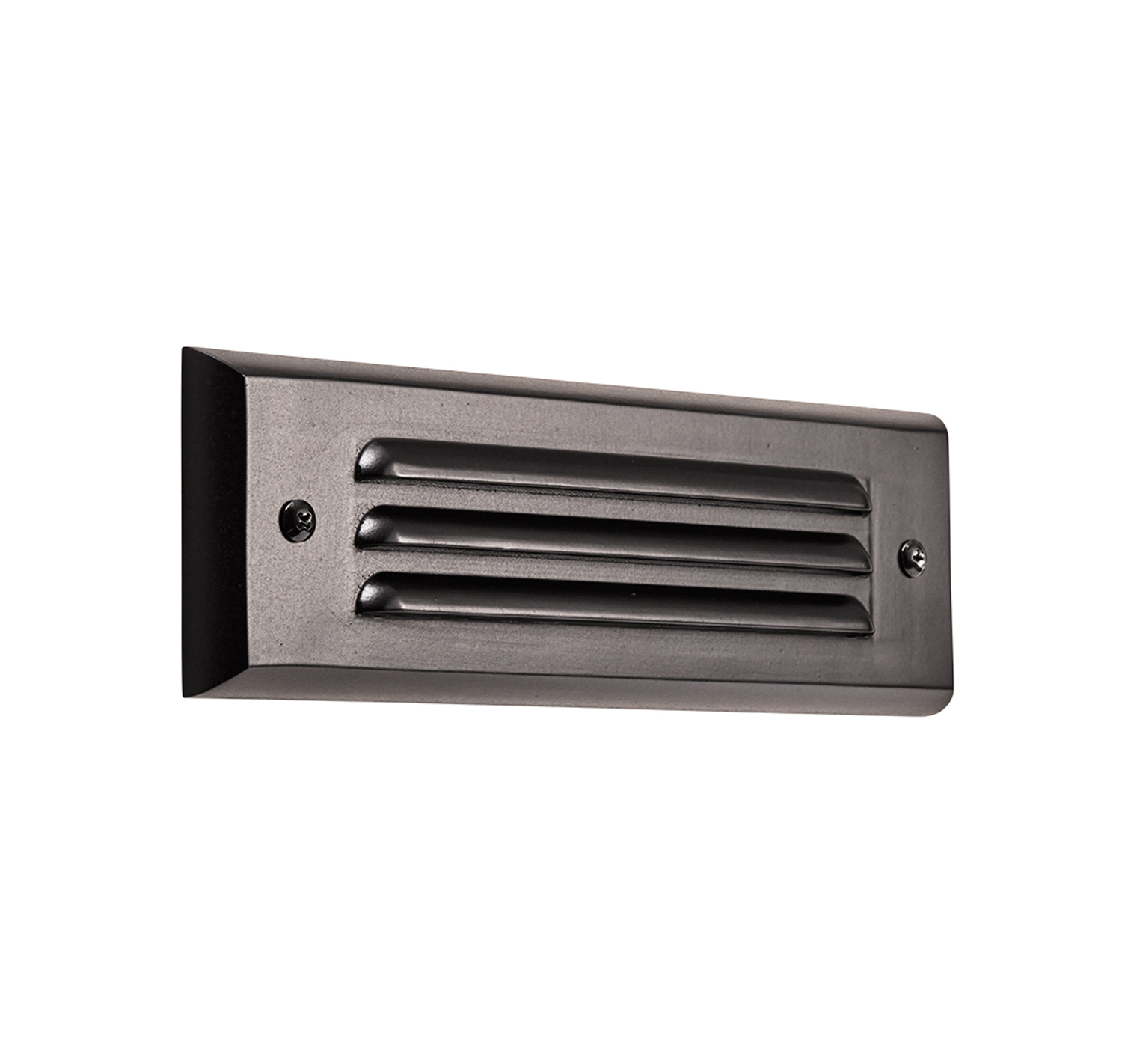

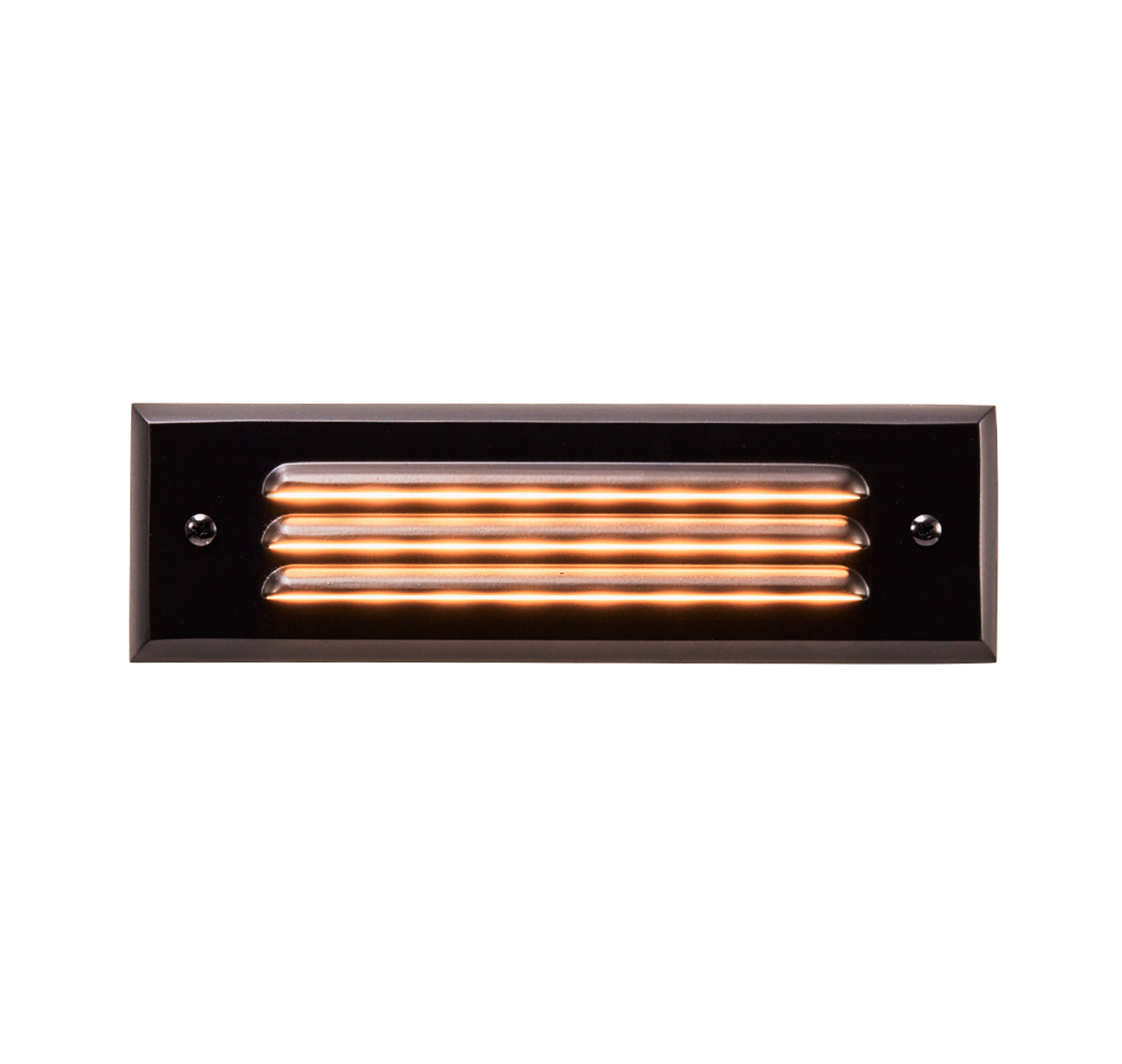

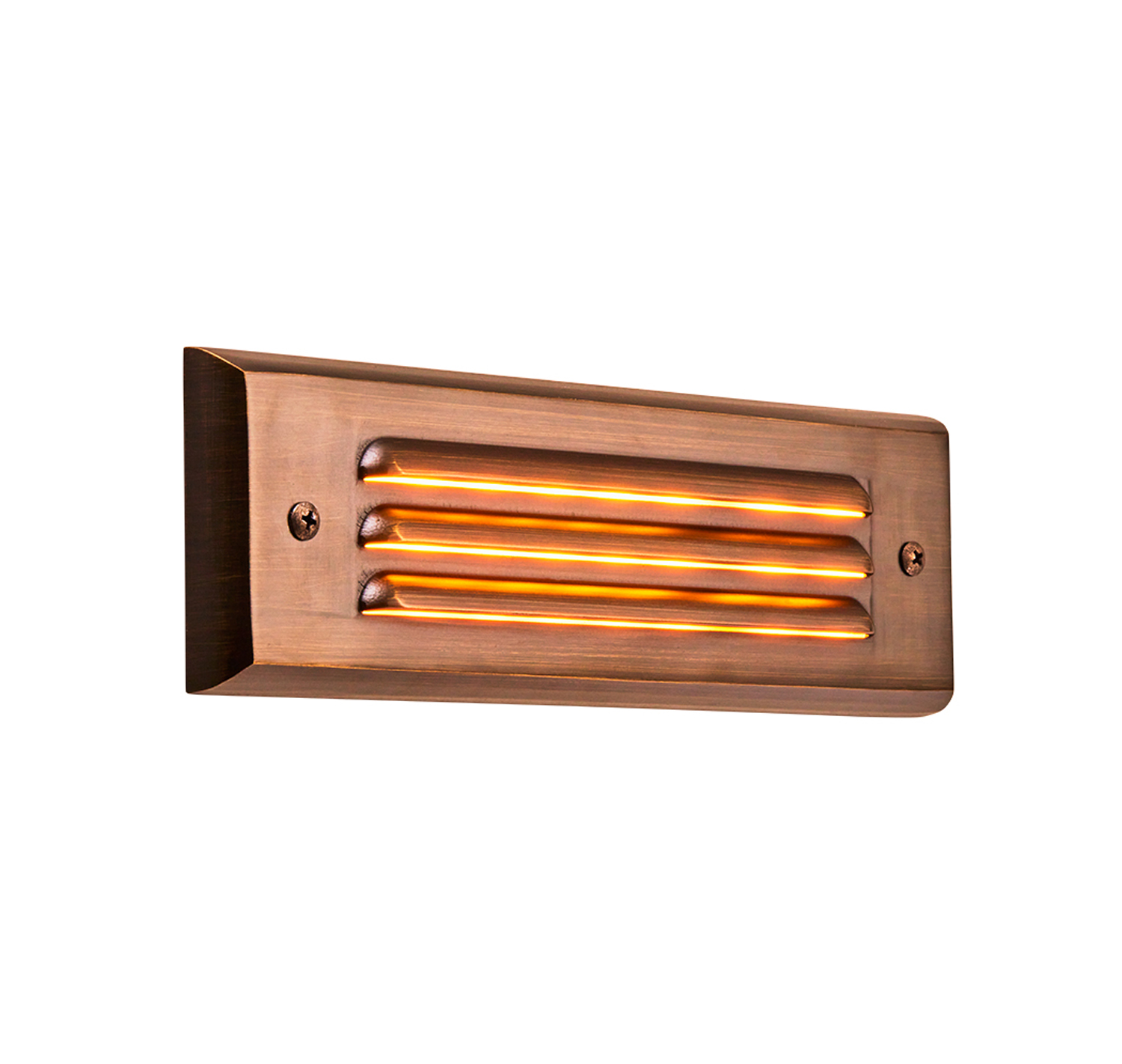

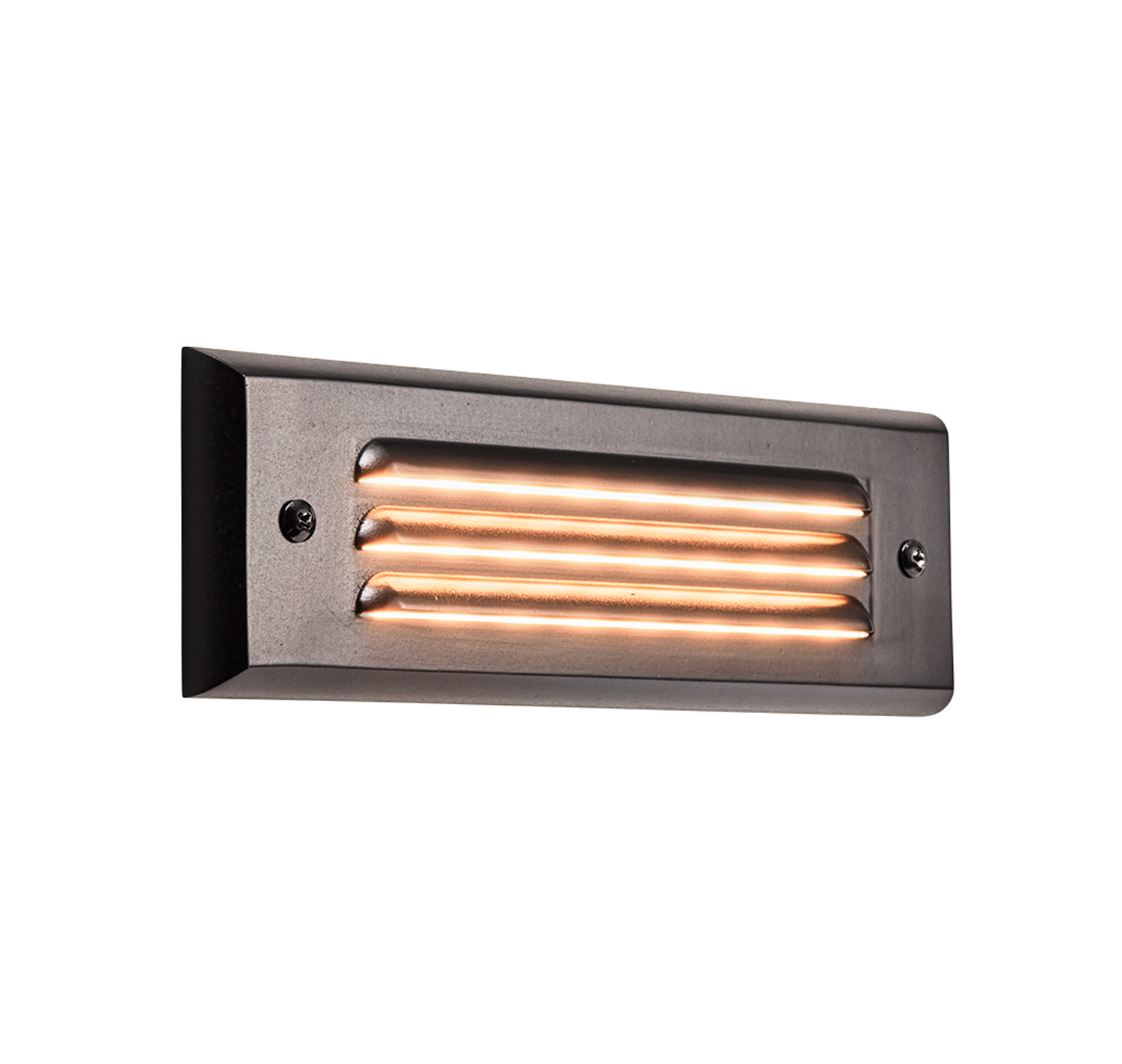

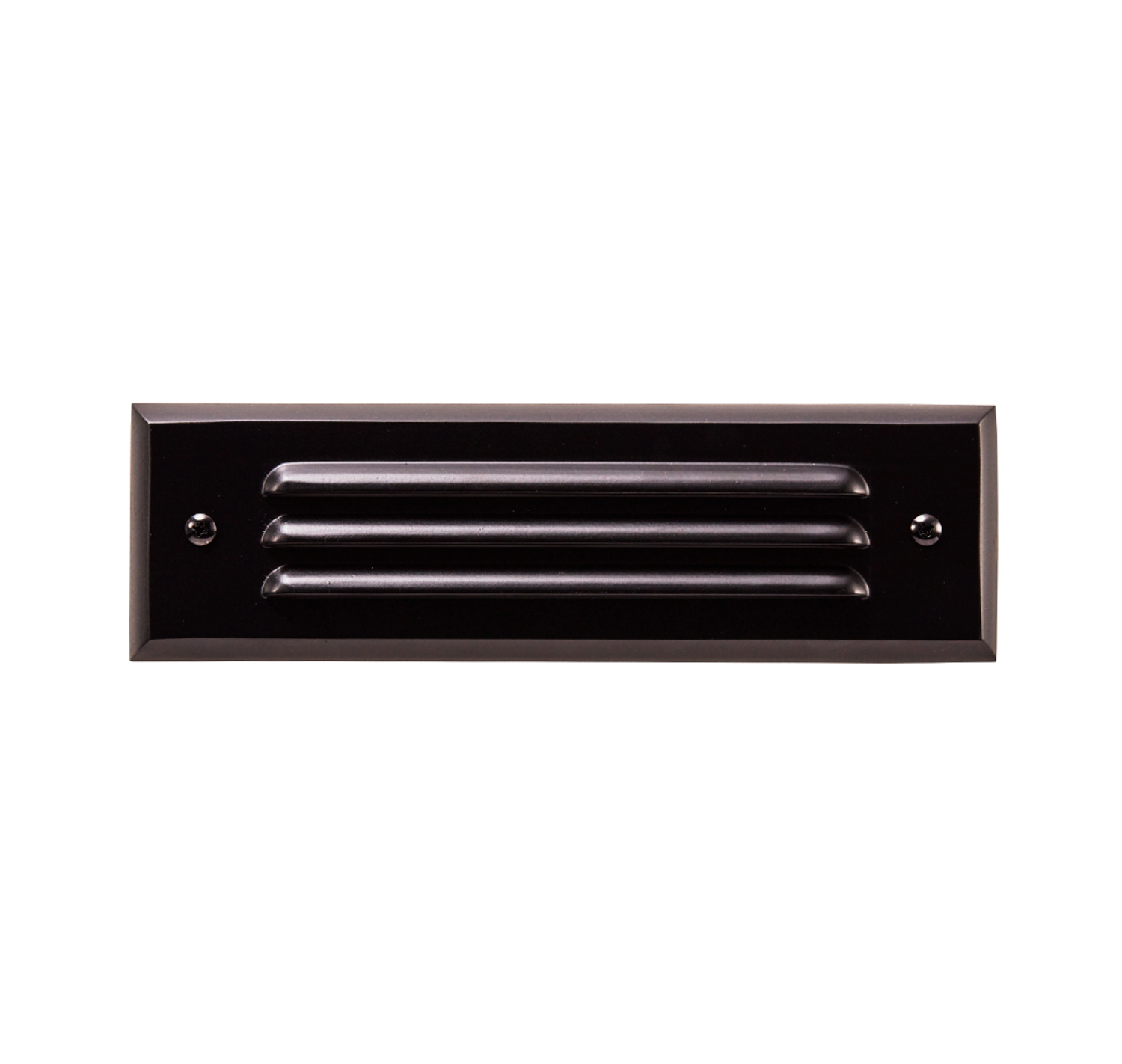

    9.5” width x 2.88” tall, louvered face. Convenient surface-mounted (backless), does not have/require a junction box. 13W integrated LED standard.

    FAST, CONVENIENT INSTALLATION

    Thin style fixture allows surface mounting to any surface. No junction box needed or provided. Wood screw anchors provided. Choose other anchors to affix to masonry if desired.

    Specifications

    Lead Wire: 25’ 16AWG brown wire lead.

    Material: Brass construction.

    Light Source

    Standard integrated 13W 1000lm 2700K LED. Optional factory-installed RGB Bluetooth module. Note that heavy shielding of louvered cover reduces lumen output significantly, consult factory for photometrics if needed.

    Dimensions

    WIDTH9.5"
    HEIGHT2.88"

    Factory-Installed RGB LED Bluetooth Module

    WATTAGE2w - 5w
    LUMEN OUTPUT15lm - 300lm
    CCT OPTIONS2700K, 3000K, 4000K
    RGB OPTIONSUnlimited color wheel, quick preset options for red, green, blue, amber and purple
    DIMMINGOption available for every color choice.

    How to Specify

    FIXTURECHOOSE FINISHCHOOSE LIGHT SOURCE
    SL35-LED Add -BLK for black overcoat-LED for standard integrated
    or -BT for RGB Bluetooth module
    Example: SL35-LED-LED
