Finish Options
Aged Brass
(Standard)
Premium
Black Overcoat
(Optional) -BLK

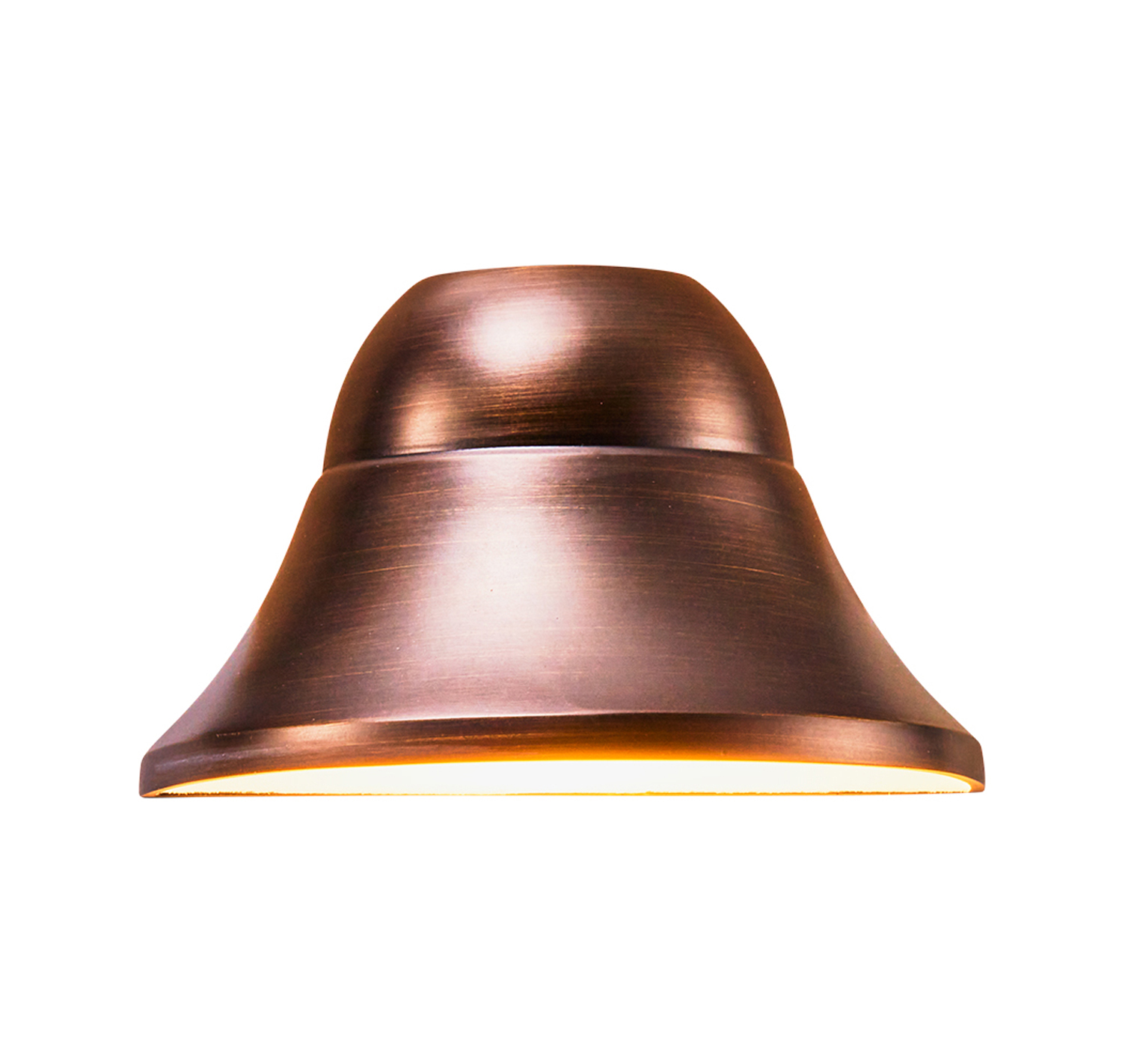

Bell-shaped fixture has a decorative daytime appearance, providing versatility for mid-wall and low-level installations. 3.9” width and 2” depth provides wider spread of light than SL100.
Specifications
Wire Lead: 25’ 16AWG brown wire lead.
Mounting: Concealed mounting base plate and fasteners with adjustable mounting guides. Fixture face attaches to mounting base with inconspicuous allen hex screws. Mounting template provided to guide in mounting and concealing wiring. Splices are made remotely from fixture, not in base plate.
Material: Brass.
Socket: G4 Bi-Pin, Spring-loaded ceramic, with dual contacts.
Dimensions
| DIAMETER | 3.9" |
| DEPTH | 2" |
How to Specify
| FIXTURE | CHOOSE LIGHT SOURCE |
| SL150 | - LED for LBIPIN-LED-200lm 2.5 watt 2700K lamp (blank for no lamp) |
Example: SL150-LED
