Finish Options

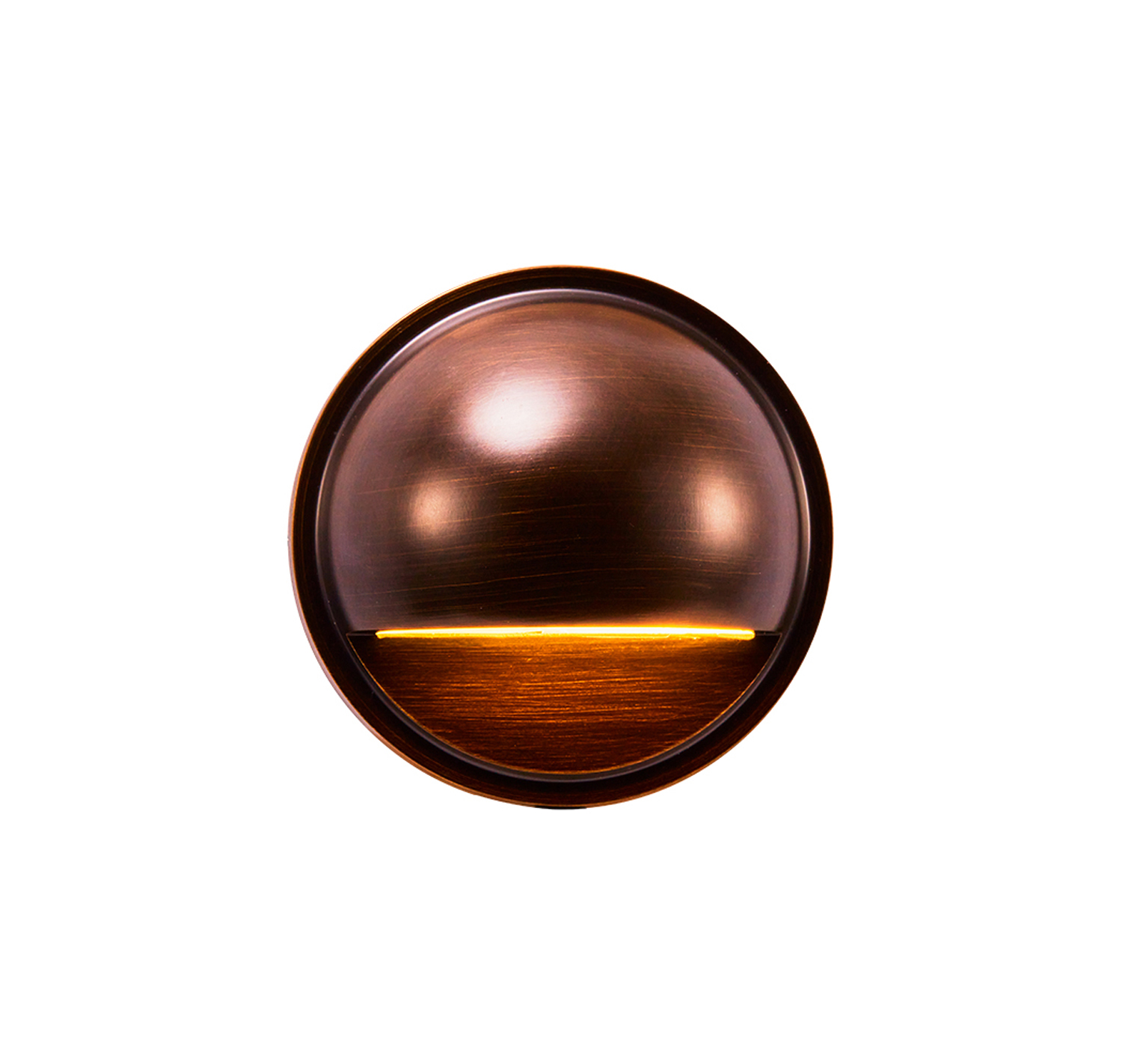

Aged Brass
(Standard)
Premium

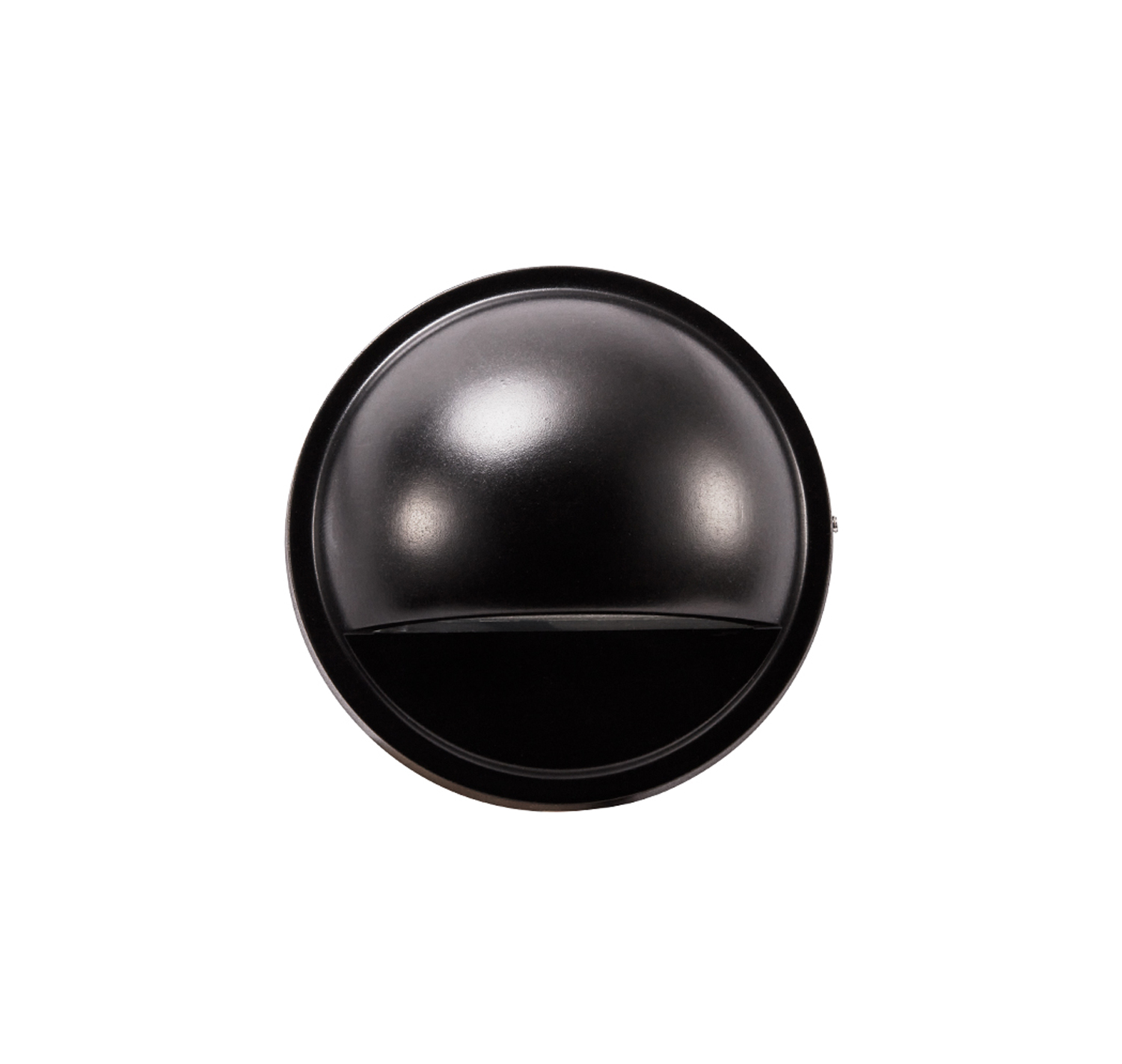

Black Overcoat
(Optional) -BLK
Versatile surface-mounted fixture commonly used on fence posts, steps and walls to provide low-level illumination for safe passage. 3.4” diameter fits a traditional 4” wood post. 1.75” depth.
Specifications
Wire Lead: 25’ 16AWG brown wire lead.
Mounting: Concealed mounting base plate and fasteners with adjustable mounting guides. Fixture face attaches to mounting base with inconspicuous allen hex screws. Mounting template provided to guide in mounting and concealing wiring. Splices are made remotely from fixture, not in base plate.
Material: Brass.
Lens: Frosted Lens
Socket: G4 Bi-Pin, Spring-loaded ceramic, with dual contacts.
Dimensions
| DIAMETER | 3.4" |
| DEPTH | 1.75" |
How to Specify
| FIXTURE | CHOOSE LIGHT SOURCE |
| SL100 | - LED for LBIPIN-LED-200lm 2.5 watt 2700K lamp (blank for no lamp) |
Example: SL100-LED
