GL390

In-Ground Lights

Home • Fixtures • In-Ground Lights • GL390

    Finish Options


    Aged Brass
    (Standard)


    Premium
    Black Overcoat
    (Optional) -BLK

    GL390

    In-Ground Lights

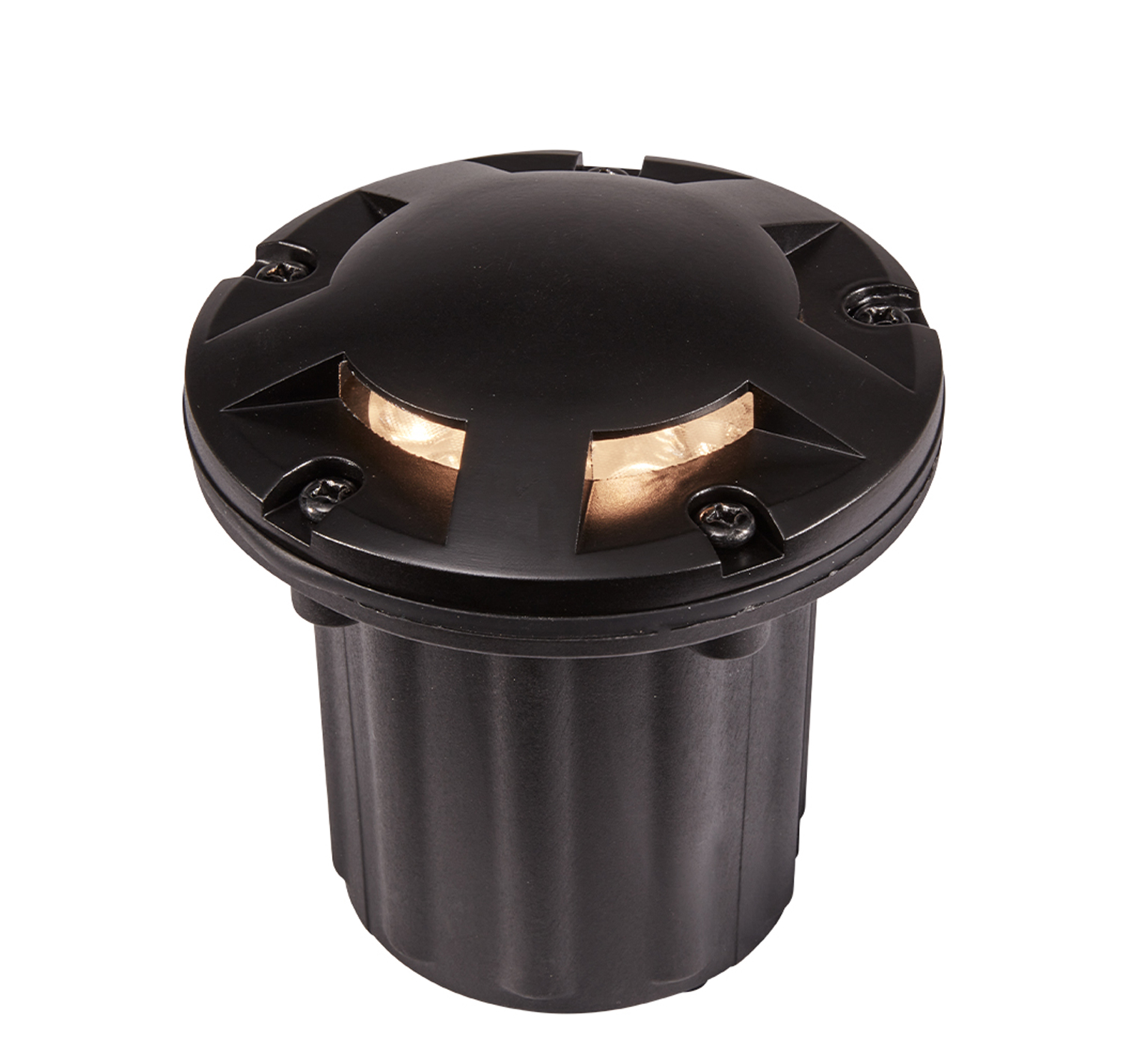

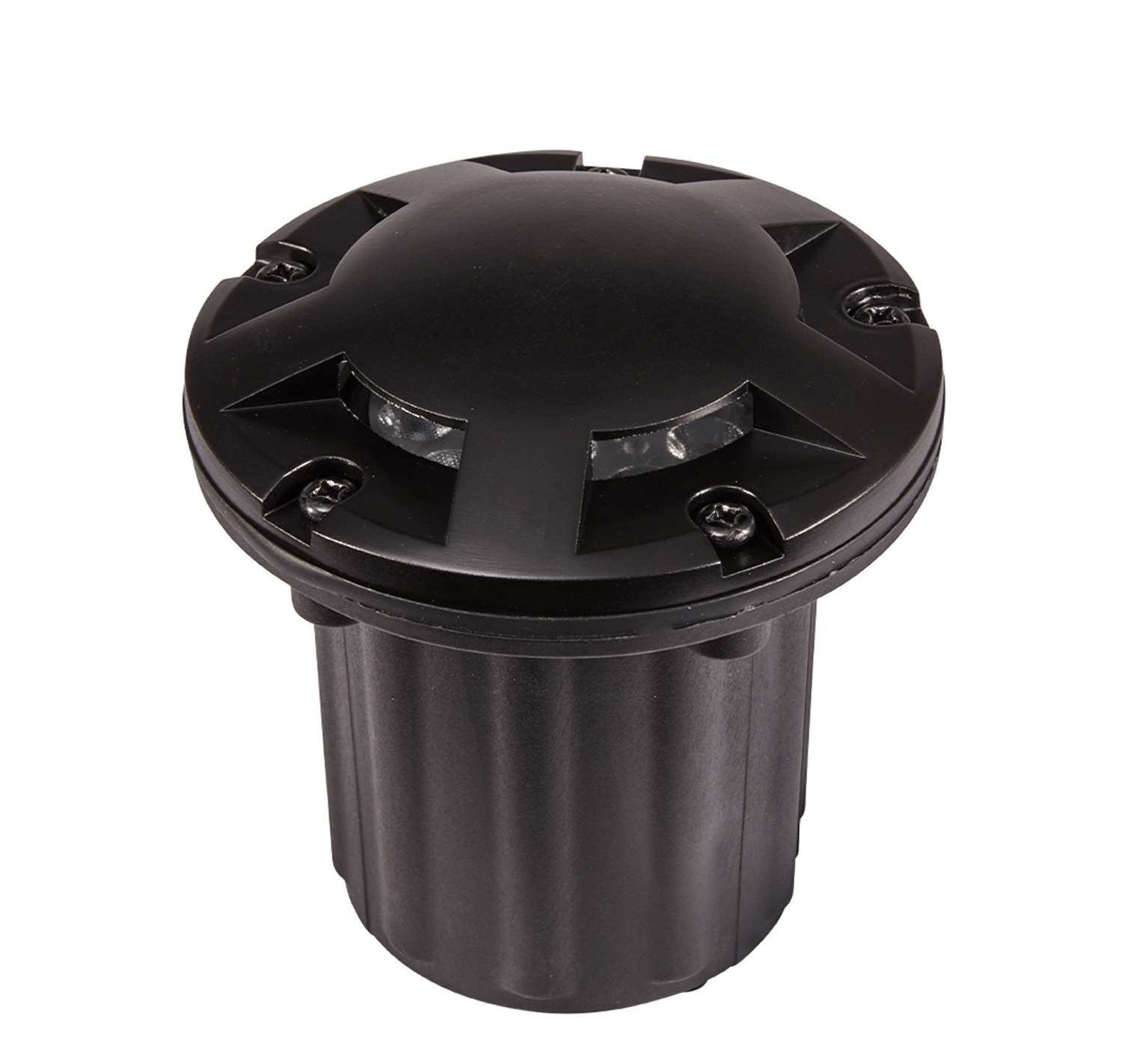

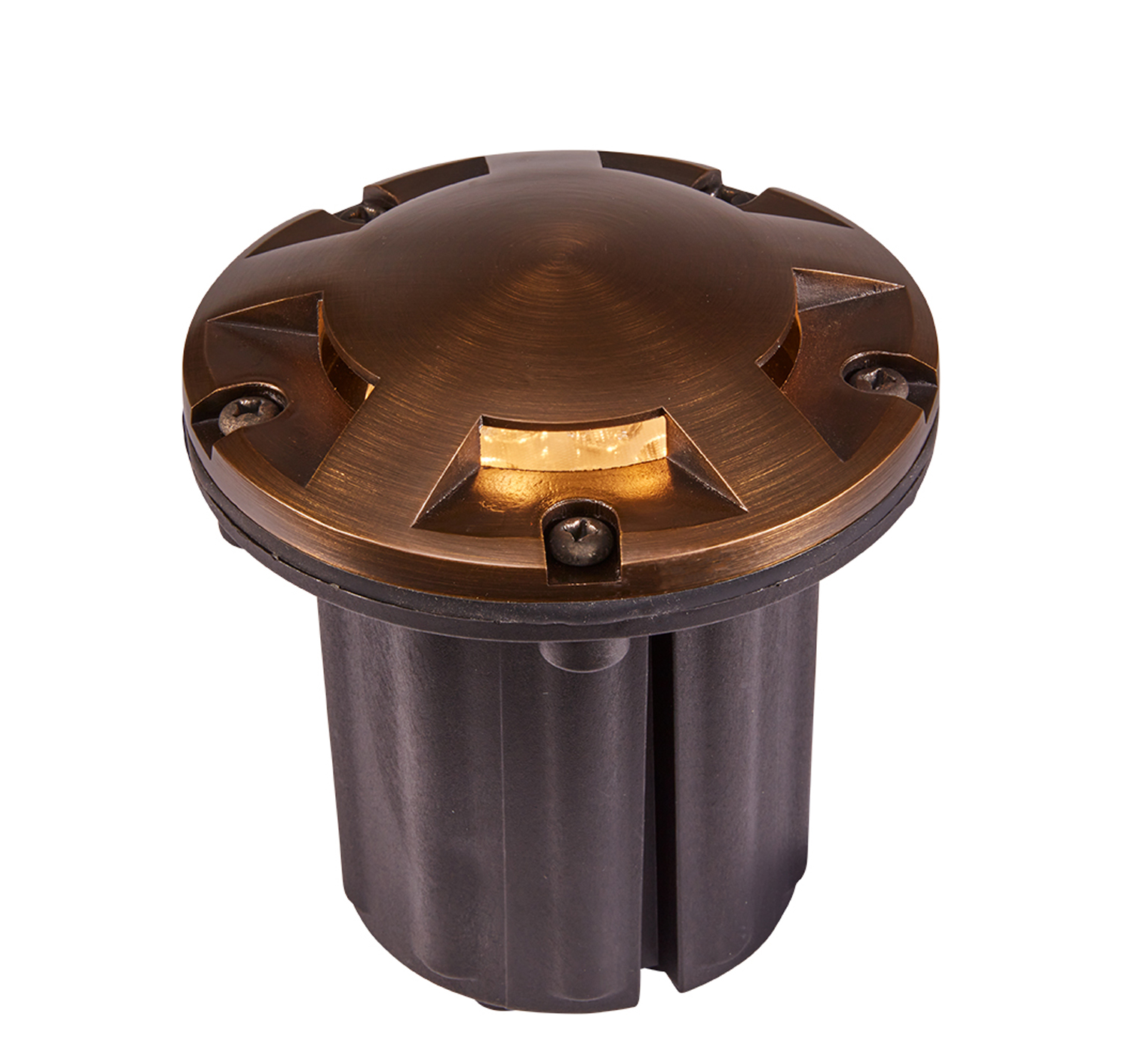

    Ground wash, 360 pattern. A complete family of in-grade lighting solutions for a variety of lighting applications. Combines a rugged brass lid with a non-corrosive polymer housing for long life.

    Specifications

    Lead Wire Length: 60” 16AWG wire lead.

    Housing: Non-corrosive polymer.

    Lid: Cast brass, attached with 5 color-matched stainless steel screws.

    Socket: Spring-loaded ceramic bi-pin MR16, with dual contacts and lamp clips.

    Spec Sheet
    Installation Details
    Photometrics

    Dimensions

    LID EXPOSED DIAMETER4.87"
    BURIED FIXTURE DEPTH4.75"
    LID THICKNESS / HEIGHT 1"

    Factory-Installed Lamp Options

    ADD-SUFFIXWATTAGEBEAM ANGLEDELIVERED LUMENSCOLOR TEMPERATUREBASE COLOR CODE
    -LED4W-NS4152502900KBLACK
    -LED4W4452502900KBLACK
    -LED4W-WF4602502900KBLACK
    -LED5W5153102900KWHITE
    -LED5W-F5453102900KWHITE
    -LED5W-WF5603102900KWHITE
    -LED6W6454002900KBLUE

    Also available without lamp for field installation

    Factory-Installed RGB LED Bluetooth Module

    WATTAGE2w - 6w
    LUMEN OUTPUT15lm - 450lm
    BEAM SPREAD40°
    CCT OPTIONS2700K, 3000K, 4000K
    RGB OPTIONSUnlimited color wheel, quick preset options for red, green, blue, amber and purple
    DIMMINGOption available for every color choice.

    How to Specify

    FIXTUREFINISHCHOOSE LIGHT SOURCE
    GL390For black finish add -BLK to part number.Choose factory-installed LED lamp (add suffix as listed above)

    or -BT for factory installed Bluetooth RGB module
    (blank for no lamp)
    Example: GL390-BLK-LED5W-WF
