    GL360

    In-Ground Lights

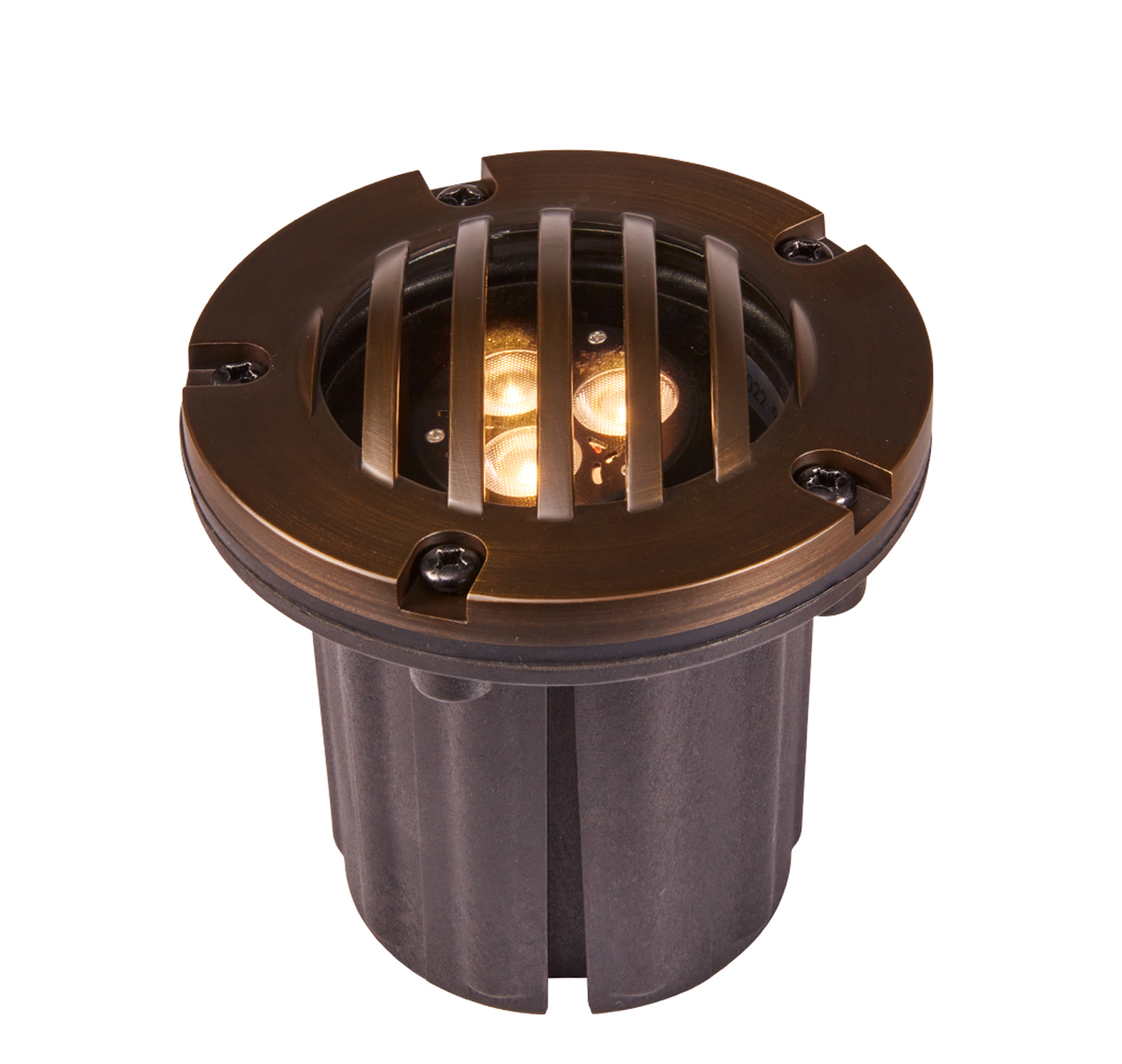

    Grate-protected convex lens, for uplighting. A complete family of in-grade lighting solutions for a variety of lighting applications. Combines a rugged brass lid with a non-corrosive polymer housing for long life.

    Specifications

    Lead Wire Length: 60” 16AWG wire lead.

    Housing: Non-corrosive polymer.

    Lid: Cast brass, attached with 5 color-matched stainless steel screws.

    Socket: Spring-loaded ceramic bi-pin MR16, with dual contacts and lamp clips.

    Dimensions

    LID EXPOSED DIAMETER4.87"
    BURIED FIXTURE DEPTH4.75"
    LID THICKNESS / HEIGHT 1"

    Factory-Installed Lamp Options

    ADD-SUFFIXWATTAGEBEAM ANGLEDELIVERED LUMENSCOLOR TEMPERATUREBASE COLOR CODE
    -LED4W-NS4152502900KBLACK
    -LED4W4452502900KBLACK
    -LED4W-WF4602502900KBLACK
    -LED5W5153102900KWHITE
    -LED5W-F5453102900KWHITE
    -LED5W-WF5603102900KWHITE
    -LED6W6454002900KBLUE

    Also available without lamp for field installation

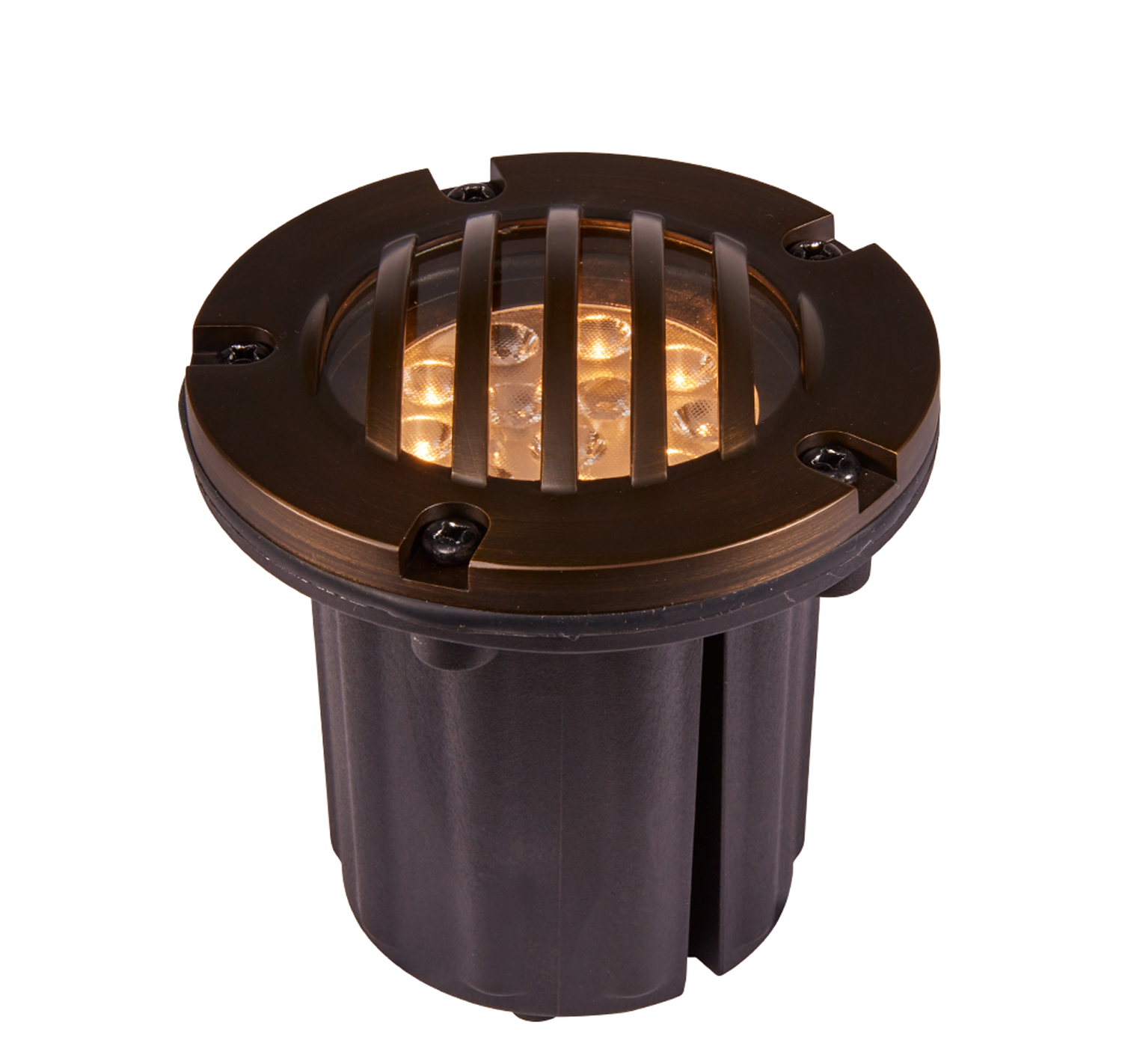

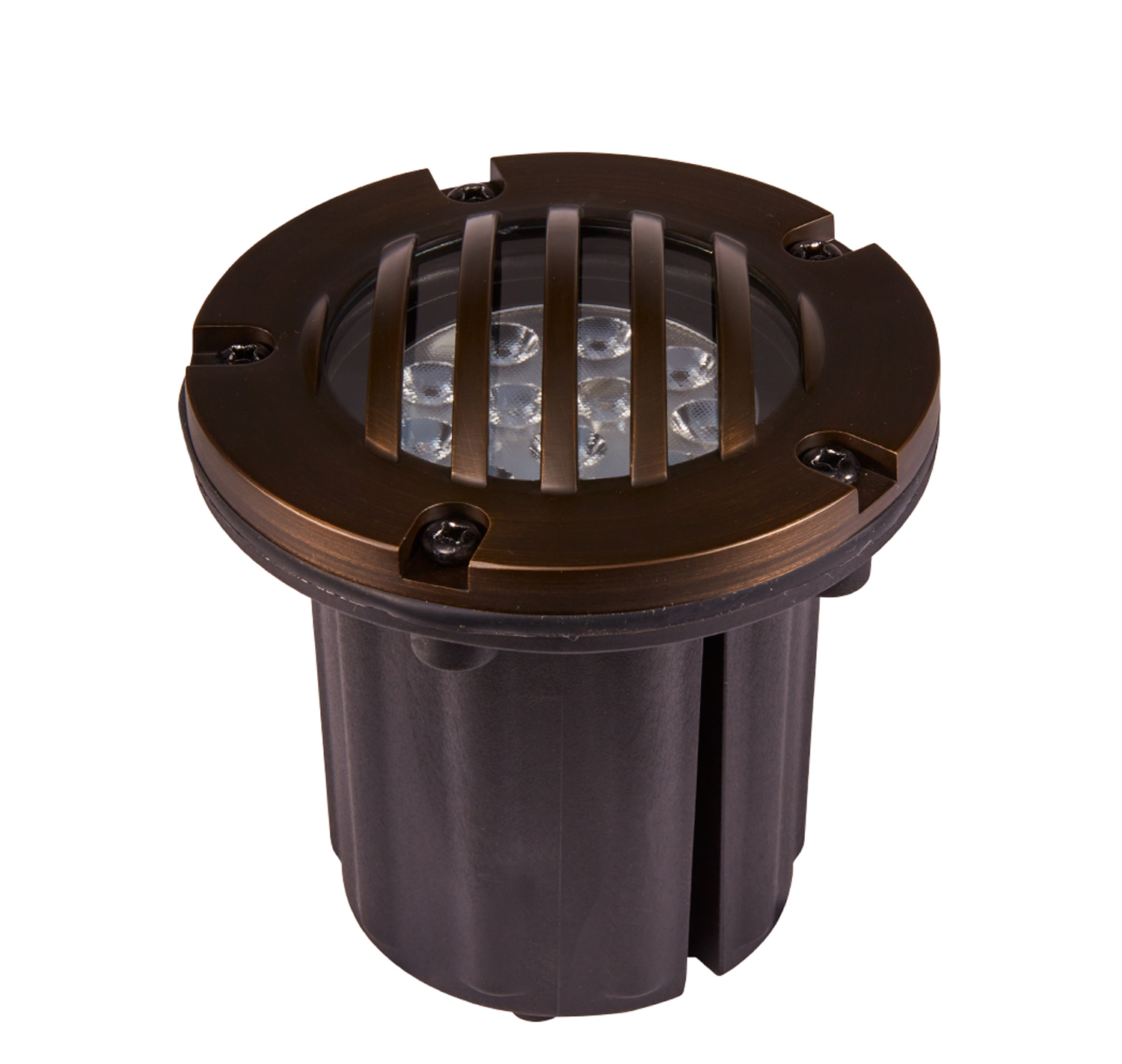

    Factory-Installed RGB LED Bluetooth Module

    WATTAGE2w - 6w
    LUMEN OUTPUT15lm - 450lm
    BEAM SPREAD40°
    CCT OPTIONS2700K, 3000K, 4000K
    RGB OPTIONSUnlimited color wheel, quick preset options for red, green, blue, amber and purple
    DIMMINGOption available for every color choice.

    How to Specify

    FIXTURECHOOSE LIGHT SOURCE
    GL360Choose factory-installed LED lamp (add suffix as listed above)
    or -BT for factory installed Bluetooth RGB module
    (blank for no lamp)
    Example: GL360-LED 5W-WF
