GL180

In-Ground Lights

HomeFixturesIn-Ground LightsGL180

    Finish Options

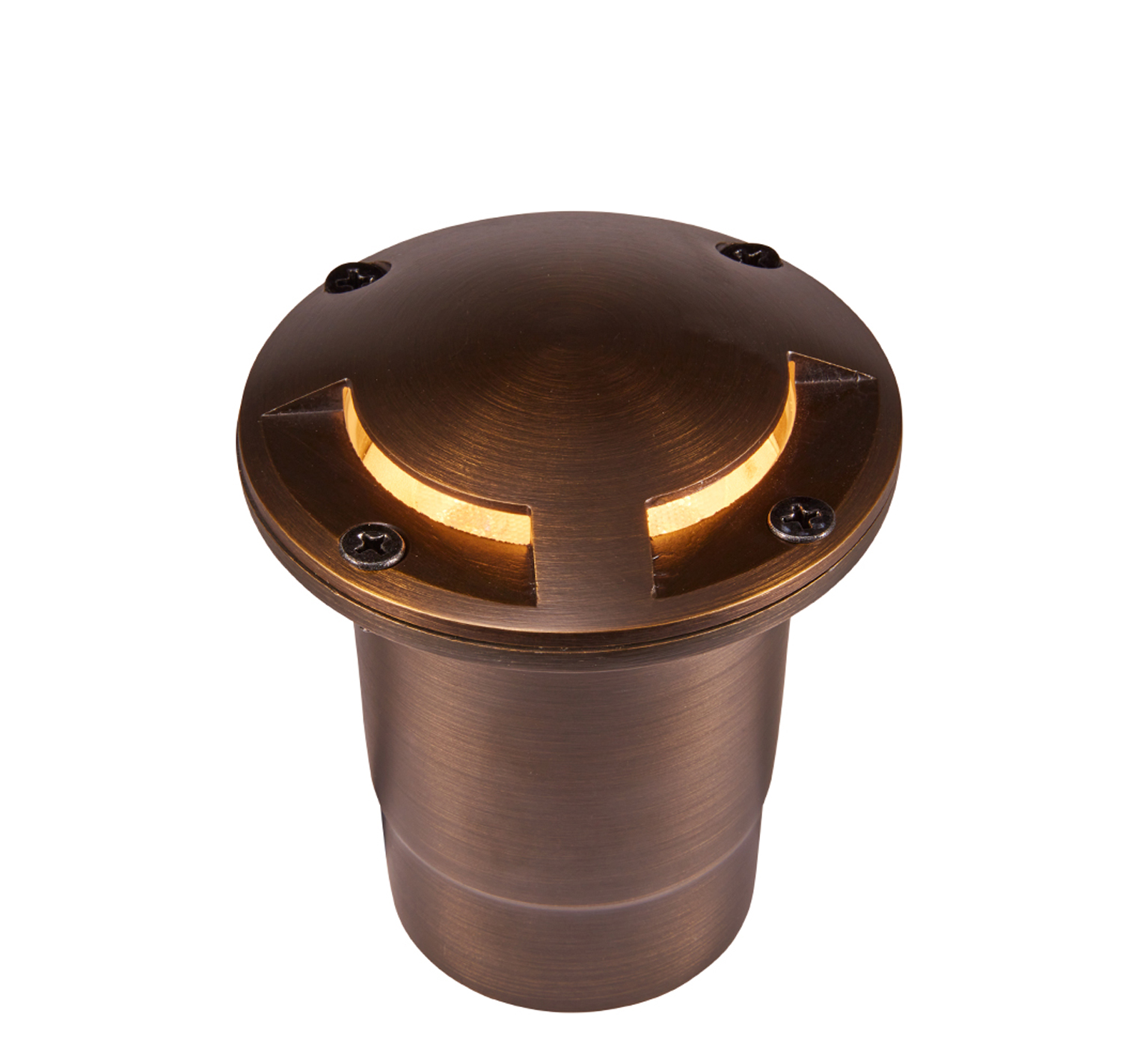

    Aged Brass
    (Standard)


    Premium

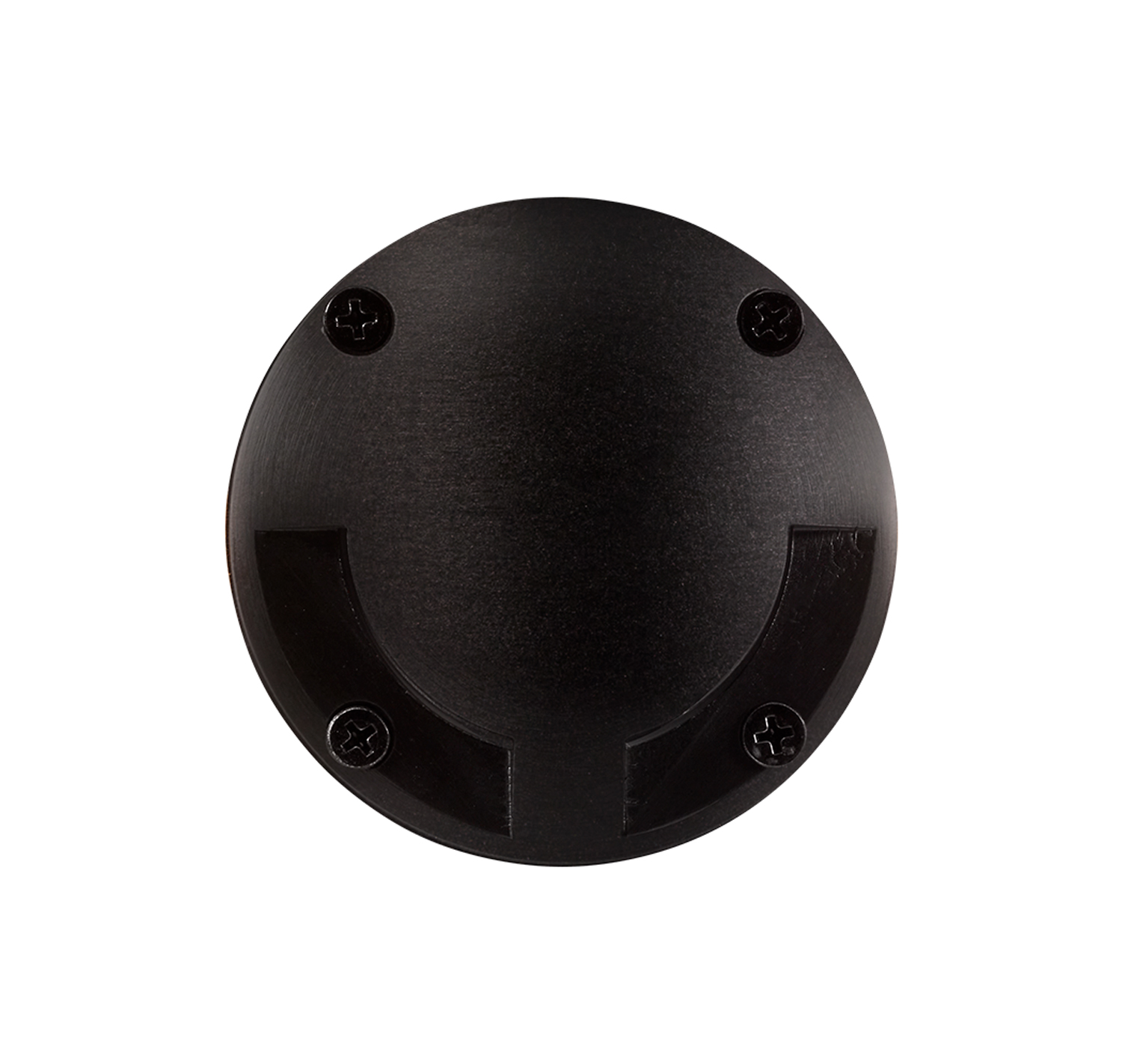

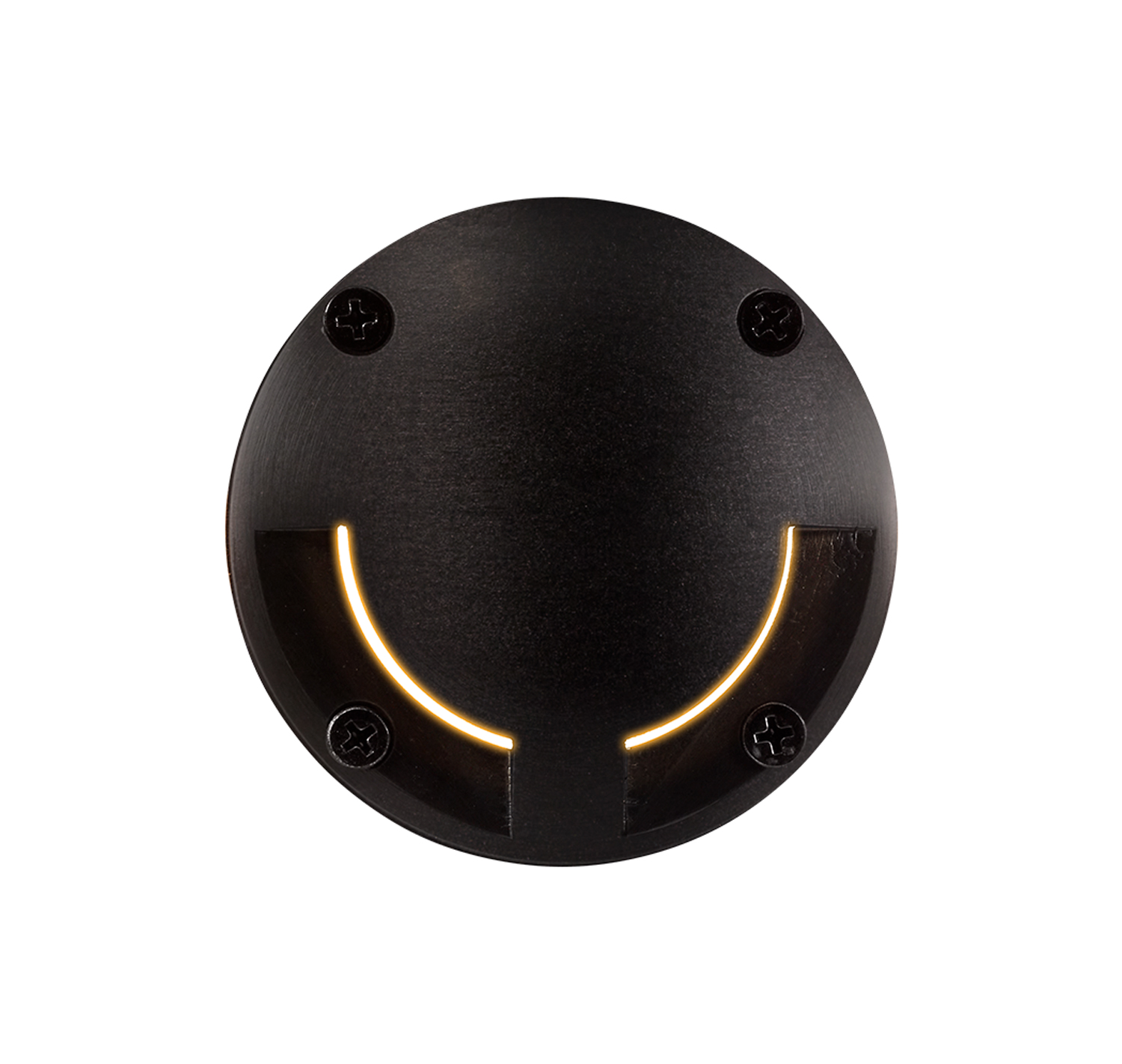

    Black Overcoat
    (Optional) -BLK

    GL180

    In-Ground Lights

    Ground wash, 180 pattern, often for pavement lighting. A complete family of in-grade lighting solutions in a design that incorporates a cast brass body and lid. Select from models for uplighting, wall-washing and ground washing in one fixture series. Small exposed diameter hides easily. Ground washing models are a good alternative to path lights in areas where an exposed fixture is objectionable.

    Specifications

    Lead Wire: Industry First, double wire lead pre-connected to the fixture, 16AWG, brown
    - one 25’ wire lead
    - one 18” wire lead

    Aiming: Lamp height adjustable on a brass track (grooves to lock settings) and a swivel mount for directional aiming of beam.

    Housing: Cast brass.

    Lid: Cast brass, attached with 4 color matched stainless steel screws

    Socket: Spring-loaded ceramic bi-pin, with dual contacts and lamp clips

    Dimensions

    LID EXPOSED DIAMETER3.5"
    BURIED FIXTURE DEPTH3.5"
    LID THICKNESS / HEIGHT 0.5"

    Factory-Installed Lamp Options

    ADD-SUFFIXWATTAGEBEAM ANGLEDELIVERED LUMENSCOLOR TEMPERATUREBASE COLOR CODE
    -LED 4W-NS4152502900KBLACK
    -LED 4W4452502900KBLACK
    -LED 4W-WF4602502900KBLACK
    -LED 5W5153102900KWHITE
    -LED 5W-F5453102900KWHITE
    -LED 5W-WF5603102900KWHITE
    -LED 6W6454002900KBLUE

    Also available without lamp for field installation

    Factory-Installed RGB LED Bluetooth Module

    WATTAGE2w - 4w
    LUMEN OUTPUT10lm - 430lm
    BEAM SPREAD40°
    CCT OPTIONS2700K, 3000K, 4000K
    RGB OPTIONSUnlimited color wheel, quick preset options for red, green, blue, amber and purple
    DIMMINGOption available for every color choice.

    How to Specify

    FIXTURECHOOSE LIGHT SOURCE
    GL180Choose factory-installed LED lamp (add suffix as listed above)
    or -BT for factory installed Bluetooth RGB module
    (blank for no lamp)
    Example: GL180-LED 5W-WF
