BOLLARD100

Area & Path

HomeFixturesArea & PathBOLLARD100

    Finish Options


    Aged Brass
    (Standard)


    Premium
    Black Overcoat
    (Optional) -BLK

    BOLLARD100

    Area & Path

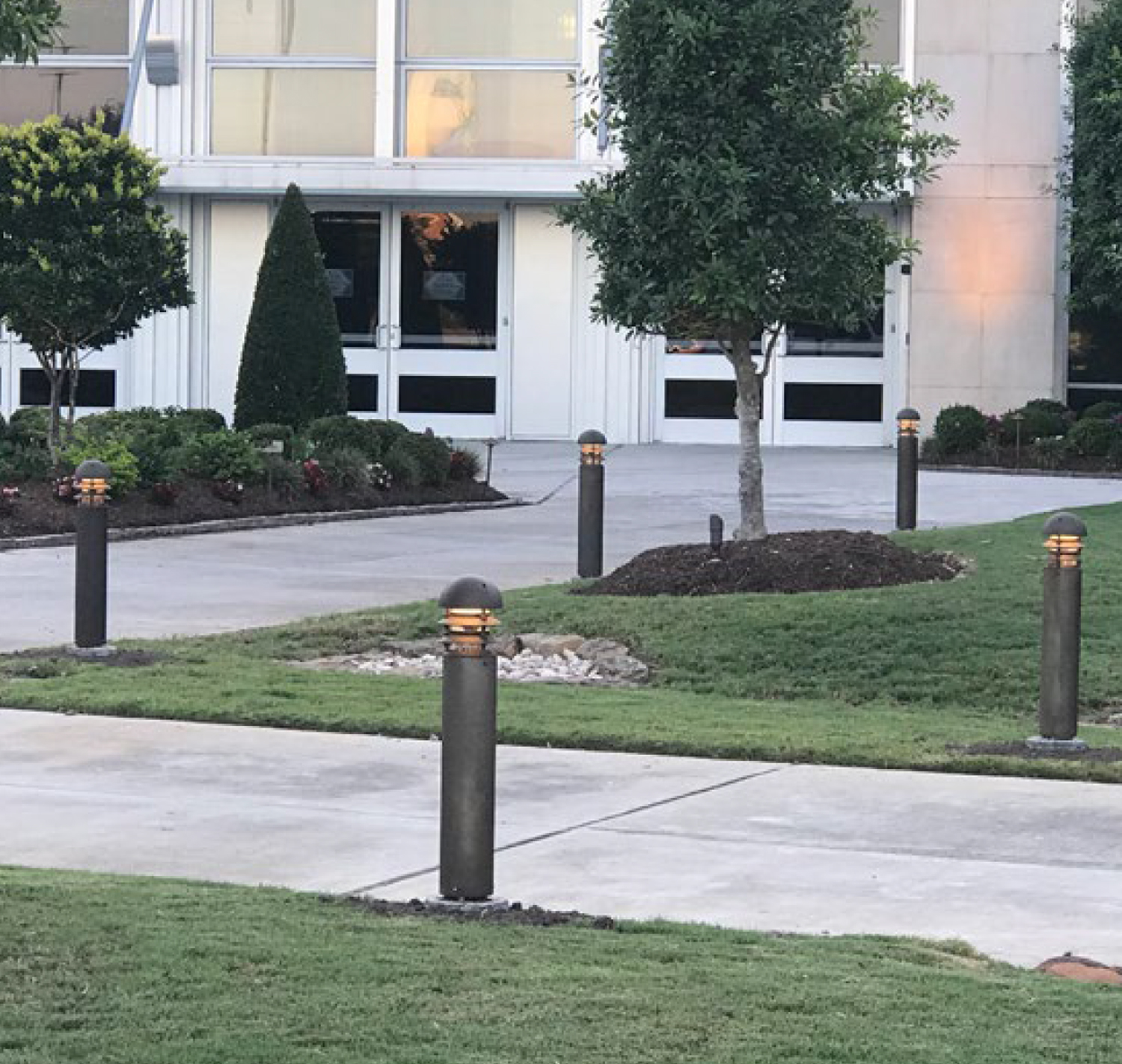

    Handsome lighted directional bollard equally suitable for estate-type residential, commercial and institutional pedestrian spaces. Low voltage design easily retrofits to existing installations to visually guide visitors without the expense of new line-voltage electrical circuits.

    Mounting / Installation

    Lead Wire Length: 36” 16AWG wire lead.

    Mounting: Stainless steel mounting base with three anchor L-bolts for installation into a poured concrete footing. For best results, footing should be higher than finished grade to protect fixture base from trimmers in lawn areas.

    Material

    Housing: Solid brass 3-tier cover and louvers. Stainless steel post with aged brass finish

    Lens: Frosted polycarbonate lens recommended and provided. Clear lens also provided

    Socket: G4 Bi-Pin, Spring-loaded ceramic, with dual contacts

    Light Source Options

    Standard LBIPIN-LED-350lm 3.5 watt 2700K supplied.

    Dimensions

    BASE HEIGHT29.5"
    BASE WIDTH5"
    TOP HEIGHT7.5"
    TOP WIDTH6"

    How to Specify

    MODELADD FOR LIGHT SOURCE
    BOLLARD100-LED for LBIPIN-LED-350lm 3.5 watt 2700K lamp
    (blank for no lamp)

    Example: BOLLARD100-LED
